Removal [09/2014 - ]: Procedure

  1. REMOVE FUEL PRESSURE SENSOR

    (See article. Refer to REMOVAL [09/2014 - ] )

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

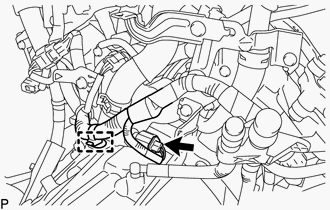

    1. Disconnect the clamp and connector.
      GTY400149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

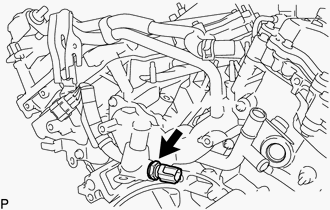

    2. Remove the engine coolant temperature sensor and gasket.
      GTY400150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
