Reassembly [10/2015 - ]: Procedure

  1. INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET
    1. Install the No. 1 millimeter wave radar sensor bracket with the 2 screws.

      HINT:

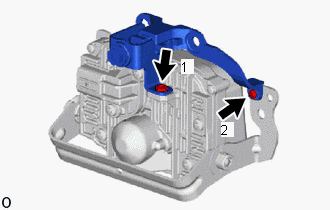

      Tighten the screws in the order shown in the illustration.

      GTY525432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
