Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER
    1. Detach the 2 claws and 2 guides and remove the No. 2 forward recognition cover as shown in the illustration.

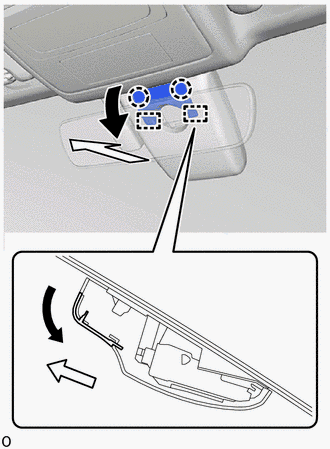

      GTY537076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      If these claws are detached separately, they may break. Detach the claws simultaneously.

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER
    1. Detach the 2 clips and 2 guides and remove the No. 1 forward recognition cover as shown in the illustration.

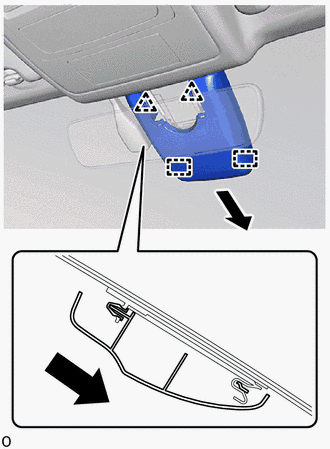

      GTY534184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Push the cover while keeping it parallel with the surface of the glass so as not to damage the clips and guides.

  3. REMOVE FORWARD RECOGNITION LATCH
    1. Detach the 2 claws and 4 guides and remove the forward recognition latch as shown in the illustration.

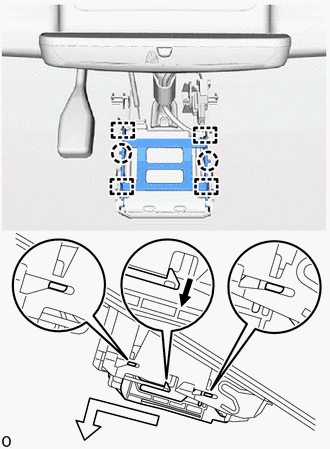

      GTY536747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  4. REMOVE FORWARD RECOGNITION CAMERA
    1. Disconnect the connector.

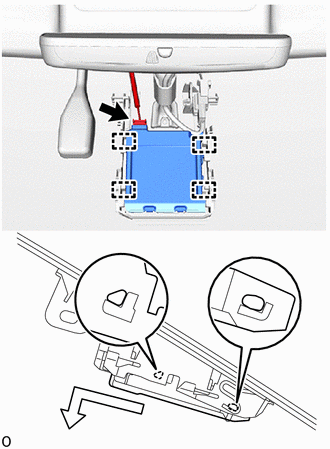

      GTY536811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Remove in this Direction
    2. Detach the 4 guides and remove the forward recognition camera as shown in the illustration.
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the forward recognition camera has been struck or dropped, replace it with a new one.
      • Do not apply excessive force.
