Components [09/2014 - 10/2015]: Illustration

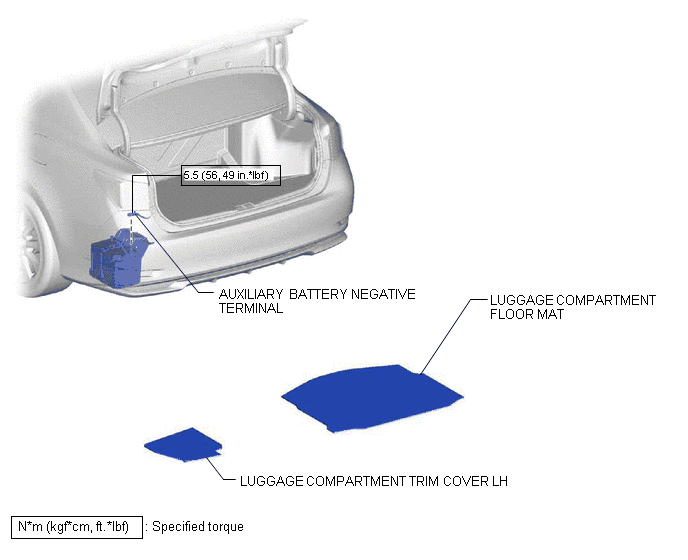

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications (1 Of 2)
GTY536528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

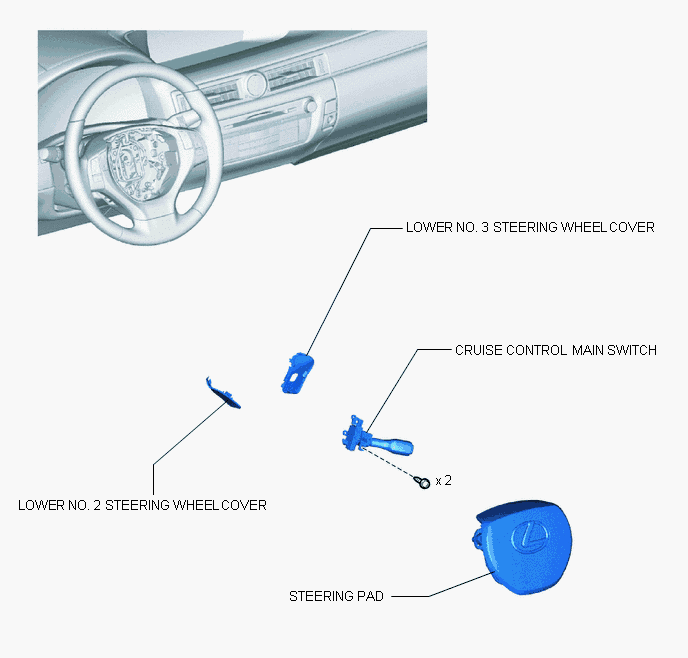

Fig 1: Cruise Control Main Switch Replacement Components (2 Of 2)
GTY526203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
