DTC B2271: Ignition Hold Monitor Malfunction [09/2014 - 10/2015]: Wiring Diagram

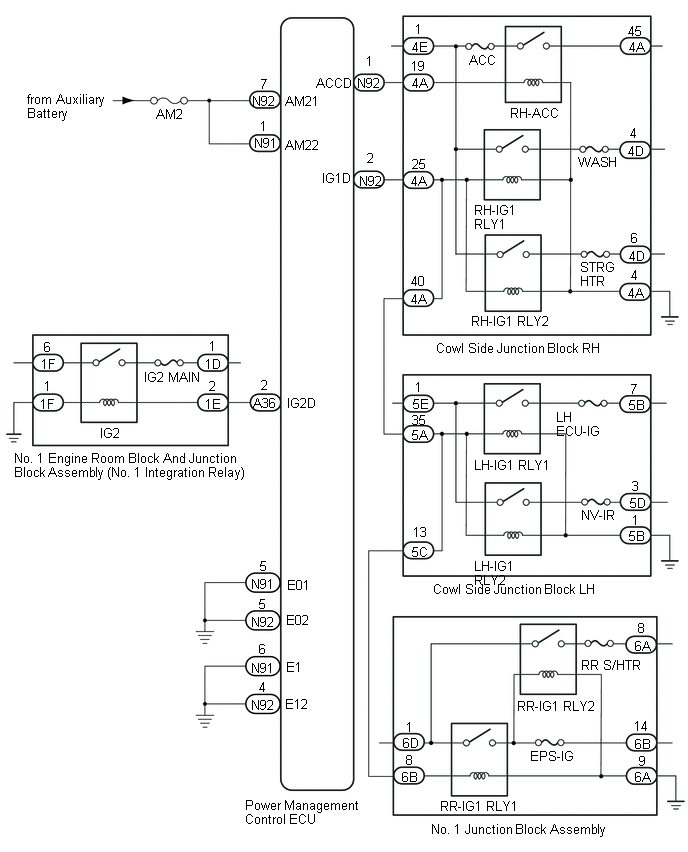

Fig 1: Ignition Hold Monitor Wiring Diagram

GTY534596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
