Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [09/2014 - ]: Wiring Diagram

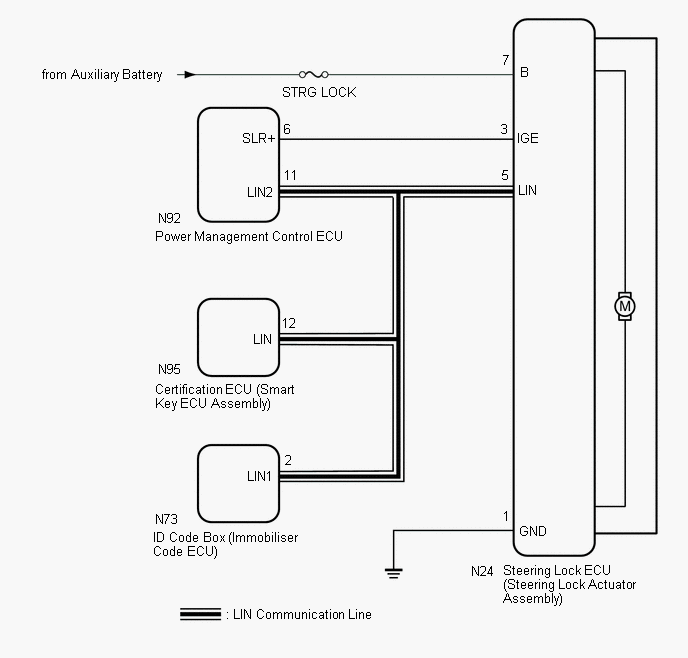

Fig 1: Steering Lock System Wiring Diagram

GTY536825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
