DTC U023A: Lost Communication with Front Camera Module [10/2015 - ]: Wiring Diagram

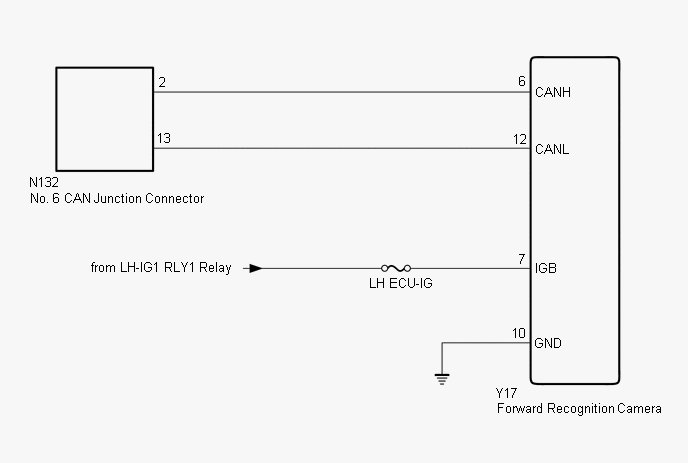

Fig 1: Forward Recognition Camera Wiring Diagram

GTY533417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
