Power Source Circuit [09/2014 - 10/2015]: Wiring Diagram

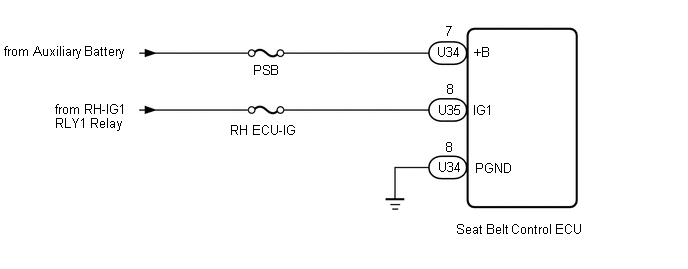

Fig 1: Power Source Circuit Wiring Diagram

GTY457337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
