ECU Power Source Circuit [10/2015 - ]: Wiring Diagram

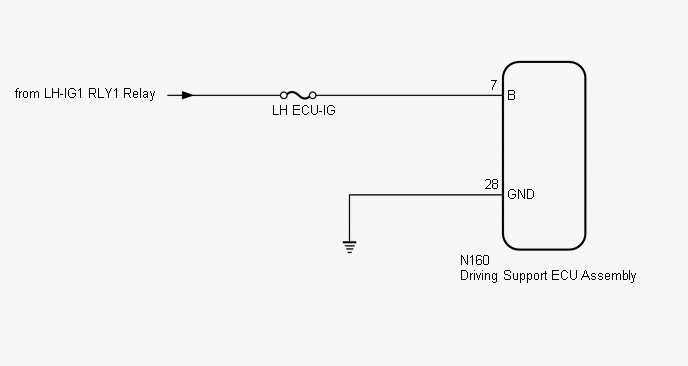

Fig 1: ECU Power Source Wiring Diagram

GTY529029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
