Fusible Link Block Assembly Quarter Panel LH: Notes

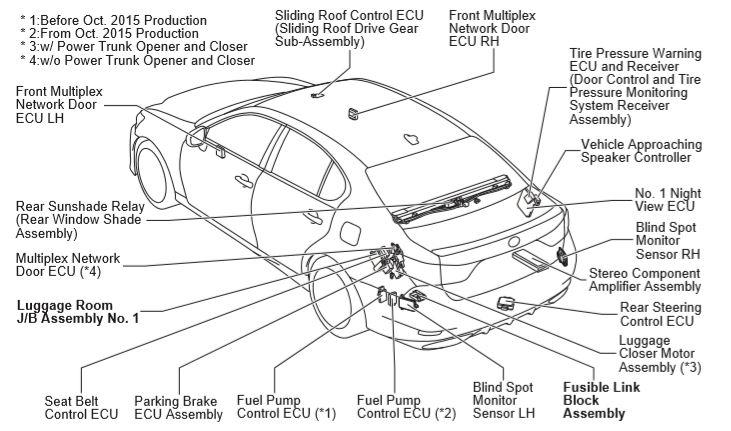

For additional information, refer to Figure.

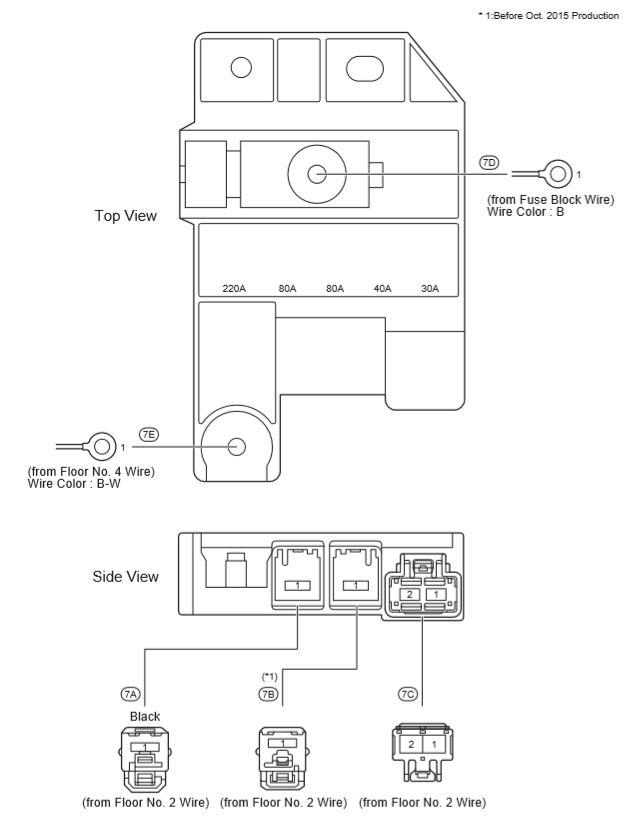

Fig 1: Fusible Link Block Assembly Fuse Identification
G00406142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fusible Link Block Assembly Fuse Identification Legend

Fuse
80A ARS
