Fusible Link Block Assembly Inner Circuit

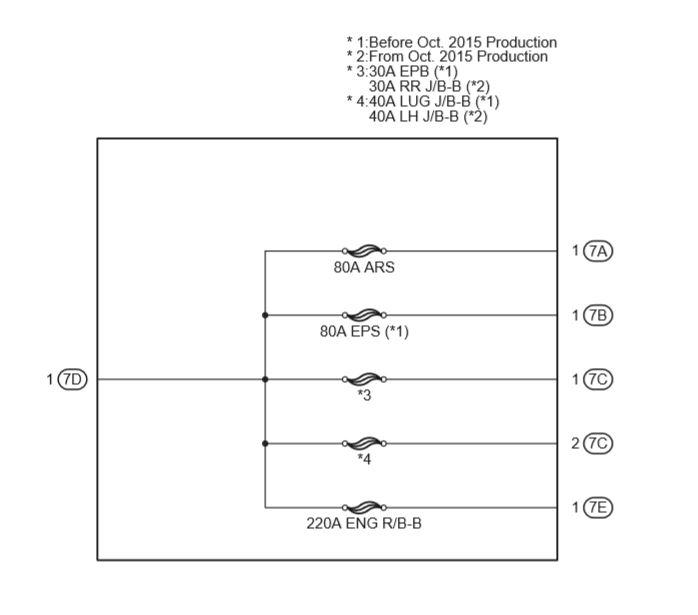

Fig 1: Fusible Link Block Assembly Inner Circuit Diagram

G00406143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
