Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [10/2015 - ]: Wiring Diagram

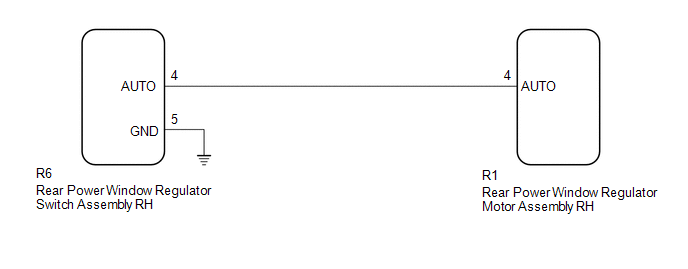

Fig 1: Rear Power Window Switch RH Wiring Diagram
GTY526935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
