Installation [09/2014 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)
    1. Attach the 2 claws and move the ID code box (immobilizer code ECU) in the direction of the arrow.
      GTY402940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

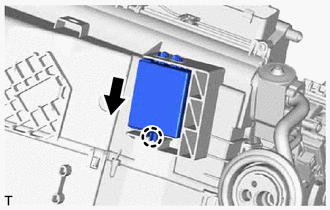

    2. Move the ID code box (immobilizer code ECU) in the direction of the arrow to attach the claw and install the ID code box (immobilizer code ECU).
      GTY402858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY
    1. Install the instrument panel reinforcement assembly with air conditioning unit assembly (See article. Refer to INSTALLATION [09/2014 - ] ).
  3. REGISTER ECU CODE
    1. Register the ECU code (See article. Refer to REGISTRATION [09/2014 - ] ).
