Installation [09/2014 - 10/2015]: Procedure

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY

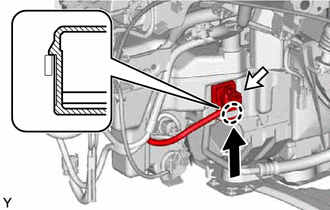

    1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.
      GTY419634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL NO. 3 COOL AIR INTAKE DUCT SUB-ASSEMBLY

    See step  3

  3. INSTALL FRONT FENDER LINER LH

    See step  4

  4. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 9

  5. ADD WASHER FLUID

    See step  2

  6. INSTALL FRONT BUMPER ASSEMBLY
    1. except Sport Package:

      (See article. Refer to INSTALLATION [09/2014 - 10/2015] )

    2. for Sport Package:

      (See article. Refer to INSTALLATION [09/2014 - 10/2015] )

  7. ADJUST FOG LIGHT AIMING (w/ Fog Light)
    1. for Halogen Fog Light:

      (See article. Refer to ADJUSTMENT [09/2014 - 10/2015] )

    2. for LED Fog Light:

      (See article. Refer to ADJUSTMENT [09/2014 - 10/2015] )
