DTC U0122: Lost Communication with Vehicle Stability Control Module; DTC U0129: Lost Communication with Brake System Control Module [09/2014 - 10/2015]: Wiring Diagram

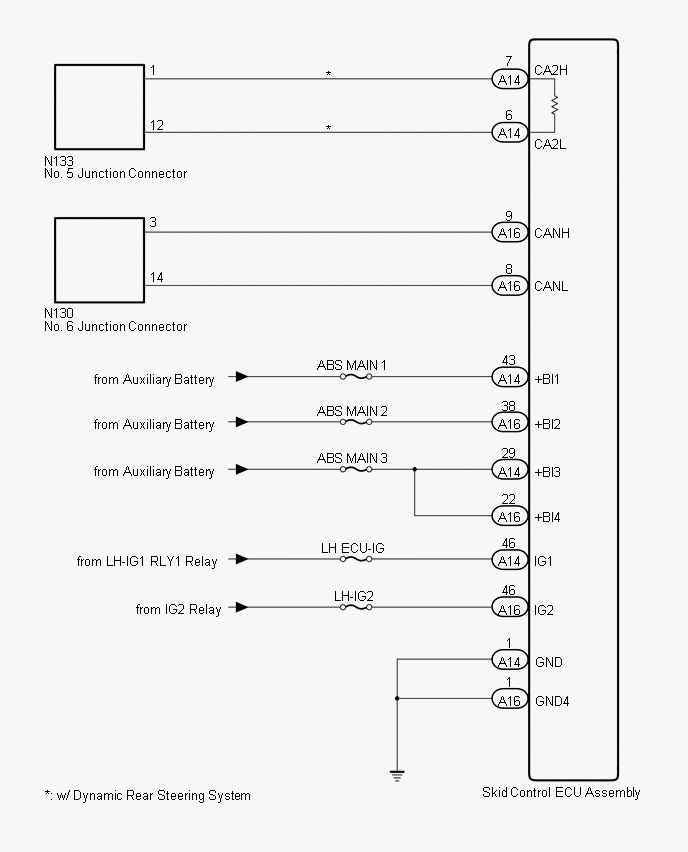

Fig 1: Vehicle Stability Control And Brake System Control Modules Wiring Diagram
GTY520472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
