Front Camera Module Communication Stop Mode [10/2015 - ]: Wiring Diagram

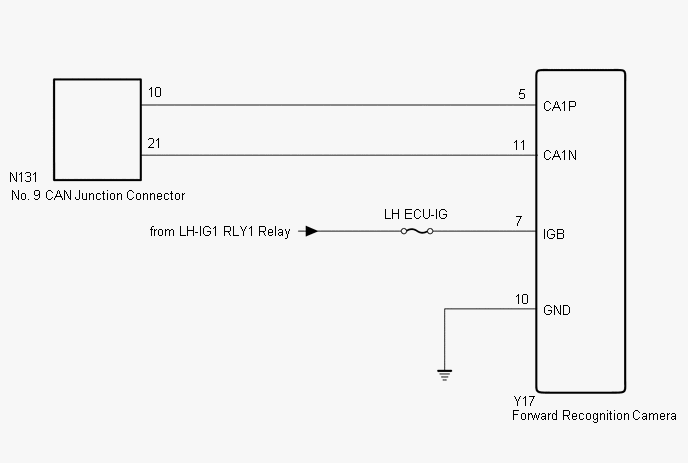

Fig 1: Forward Recognition Camera Wiring Diagram

GTY525182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
