Multi-media Module Receiver Assembly Communication Stop Mode [10/2015 - ]: Wiring Diagram

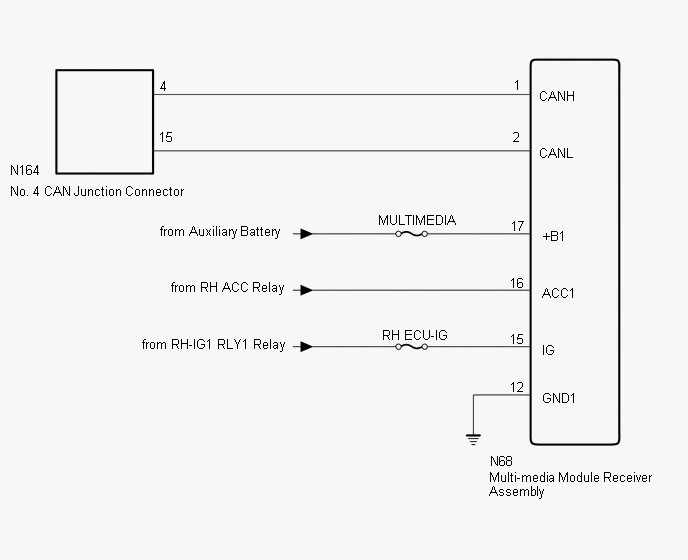

Fig 1: Multi-Media Module Receiver Assembly Wiring Diagram

GTY527950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
