Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE STEERING PAD

    (Refer to REMOVAL [09/2014 - 10/2015] )

  2. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the connector from the spiral cable.
    2. Disconnect the connector and remove the clamp.

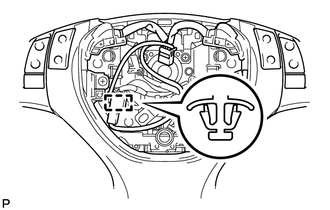

      GTY402014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws.

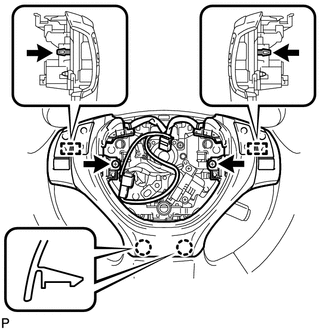

      GTY534416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the 2 pins and 2 claws and remove the switch assembly.
