Components [10/2015 - ]: Illustration

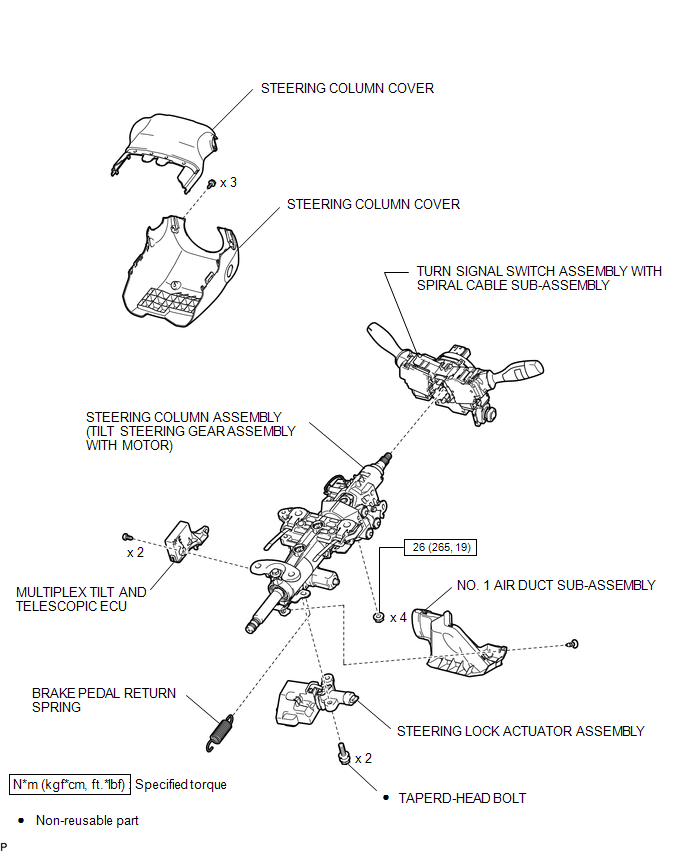

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

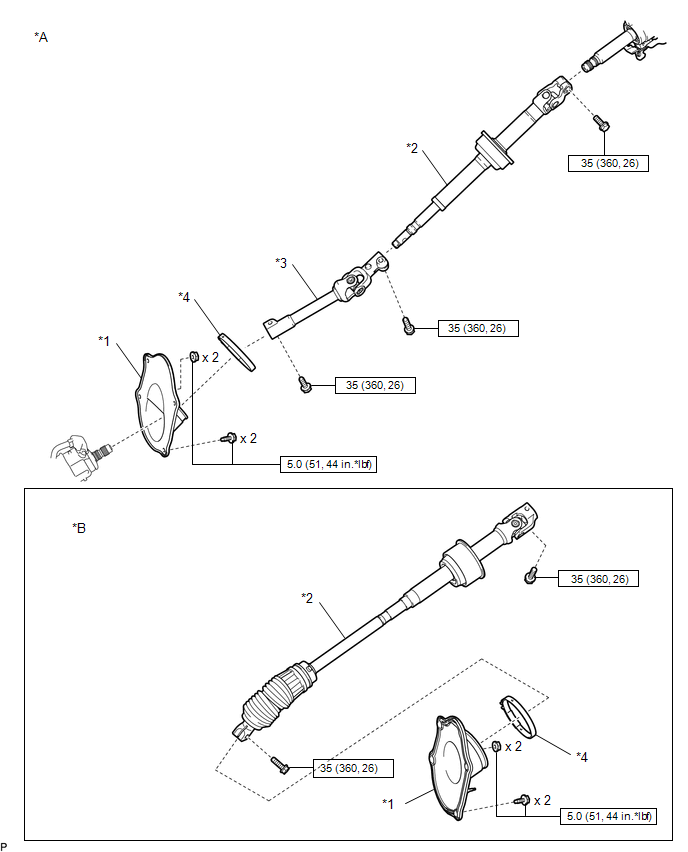

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)

Callout	Description	Callout	Description
*A	for 2WD	*B	for AWD
*1	NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY	*2	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*3	STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY	*4	CLAMP
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
