Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    (Refer to REMOVAL [09/2014 - 10/2015] )

  2. REMOVE STEERING WHEEL HEATER CONTROL ASSEMBLY

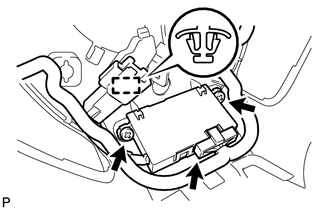

    1. Detach the clamp.
      GTY418246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and steering wheel heater control assembly from the lower steering wheel boss cover.
