Components [09/2014 - 10/2015]: Illustration

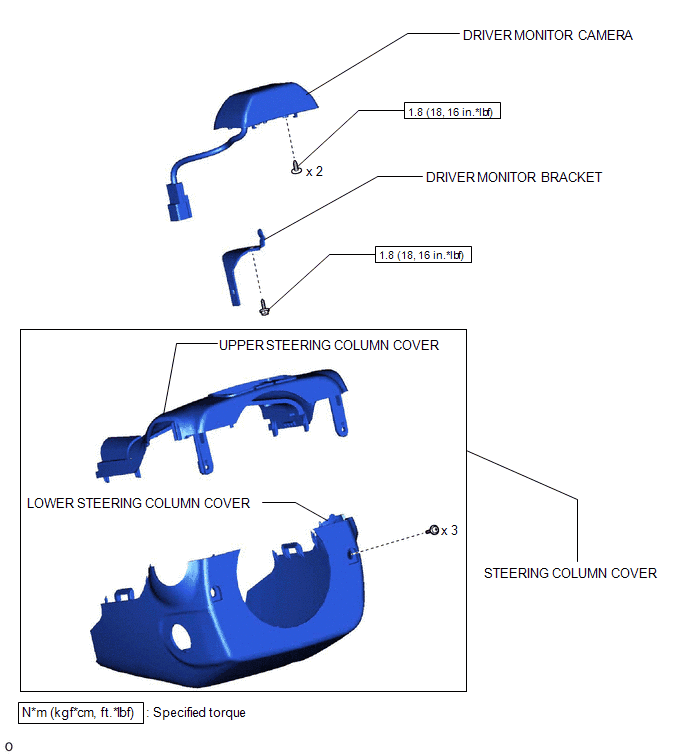

Fig 1: Driver Monitor Camera Replacement Components With Torque Specifications (09/2014 - 10/2015)

GTY398129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
