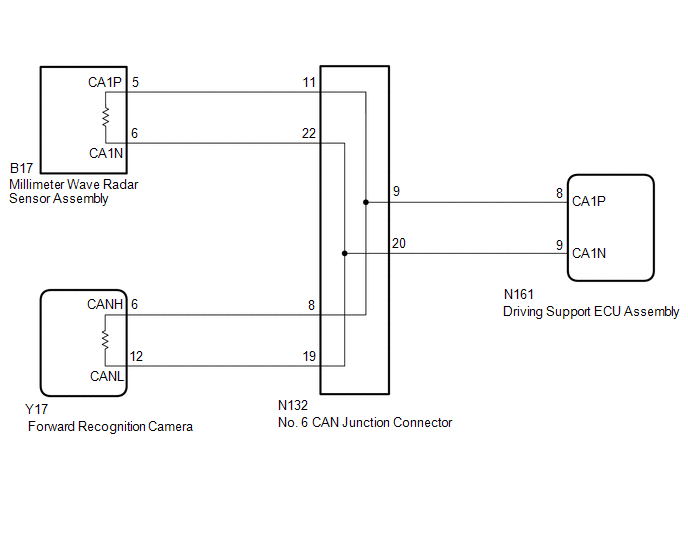

DTC U1002: Lost Communication with Gateway Module [10/2015 - ]: Wiring Diagram

GTY638432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
