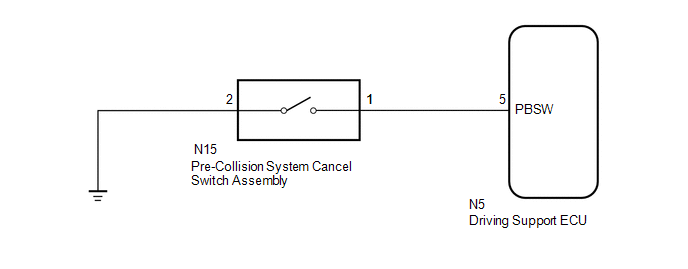

Pre-collision System Cancel Switch Circuit [09/2014 - 10/2015]: Wiring Diagram

GTY653906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
