Vehicle Identification And Serial Numbers [09/2014 - 10/2015]

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
      Fig 1: Locating Vehicle Identification Number
      GTY523425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Vehicle Identification Number
      *2 Certification Label
      *3 Frame Number
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
      Fig 2: Identifying Engine Serial Number Location
      GTY458770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

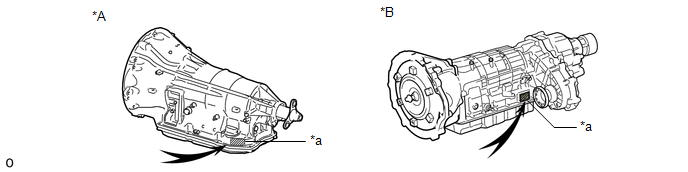

    2. The transmission serial number is stamped on the case as shown in the illustration.
      Fig 3: Transmission Serial Number Location
      GTY663507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for AA81E *B for A760H
      *a Transmission Serial Number - -
