Installation [09/2014 - 10/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR FUEL RATIO SENSOR
    1. for Bank 2 Sensor 1:

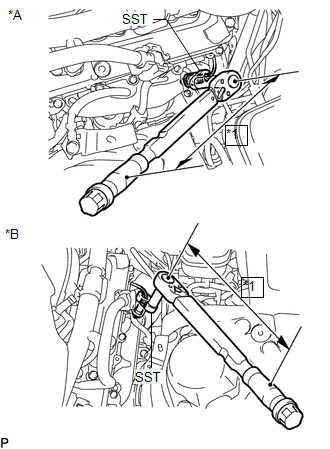

      Using SST, install the air fuel ratio sensor to the exhaust manifold LH.

      GTY676049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010

      without SST

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      with SST

      Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

      TEXT IN ILLUSTRATION

      *A for 2WD
      *B for AWD
      *1 Fulcrum Length

      HINT:

      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.). When using a torque wrench with a fulcrum length that is not 300 mm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification (Refer to PRECAUTION [09/2014 - 10/2015] ).
      • Make sure SST and the wrench are connected in a straight line.
      • Perform "Inspection After Repairs" after replacing the air fuel ratio sensor (Refer to INITIALIZATION [09/2014 - 10/2015] ).
    2. for Bank 1 Sensor 1:

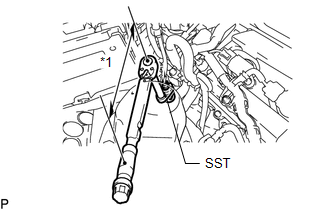

      Using SST, install the air fuel ratio sensor to the exhaust manifold RH.

      GTY639193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010

      without SST

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      with SST

      Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

      TEXT IN ILLUSTRATION

      *1 Fulcrum Length

      HINT:

      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.). When using a torque wrench with a fulcrum length that is not 300 mm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification (Refer to PRECAUTION [09/2014 - 10/2015] ).
      • Make sure SST and the wrench are connected in a straight line.
      • Perform "Inspection After Repairs" after replacing the air fuel ratio sensor (Refer to INITIALIZATION [09/2014 - 10/2015] ).
    3. Attach the 2 wire harness clamps.
    4. Connect the air fuel ratio sensor connector.
  2. CONNECT RELAY BLOCK ASSEMBLY
    1. Connect the relay block assembly with the 2 bolts and nut.

      for bolt

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      for nut

      Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  3. INSTALL NO. 4 ENGINE WIRE
    1. Connect the No. 4 engine wire to the No. 1 engine room junction block. Then, install it with the nut.

      Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)

    2. Attach the 2 wire harness clamps.
    3. Install the No. 1 engine room relay block cover.
  4. INSTALL BATTERY TRAY
    1. Install the battery tray with the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Connect the fuel pipe clamp.
  5. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  2

  6. CONNECT NO. 2 VENTILATION HOSE

    See step  3

  7. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 119

  8. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 120

  9. INSTALL ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 121

  10. INSTALL POWER STEERING ECU ASSEMBLY

    (Refer to INSTALLATION [09/2014 - ] )

  11. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 10
