Home >> Lexus >> 2017 >> GS 350 Base, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Diagnostic Codes (5 Of 7) >> SFI System >> DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [10/2015 - 09/2018] >> Wiring Diagram

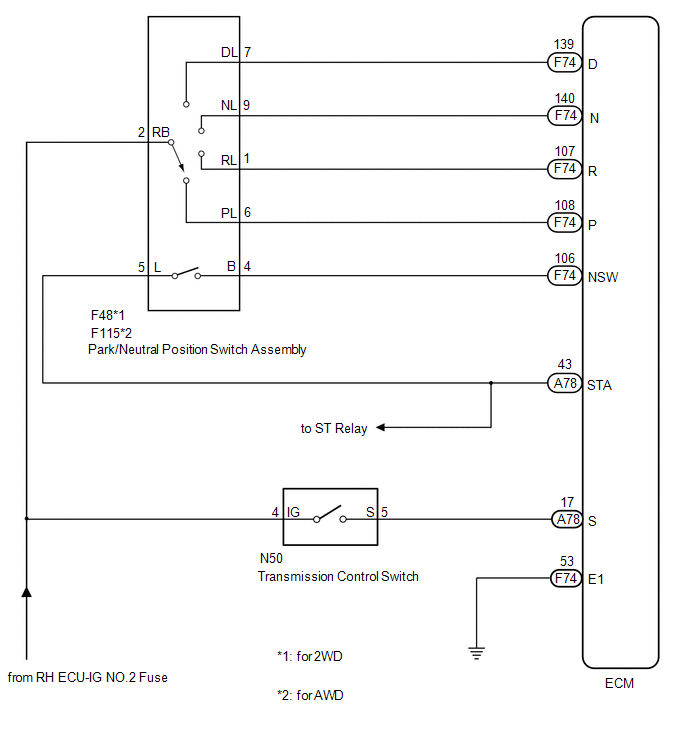

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [10/2015 - 09/2018]: Wiring Diagram

GTY624964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
