Components [10/2015 - ]: Illustration

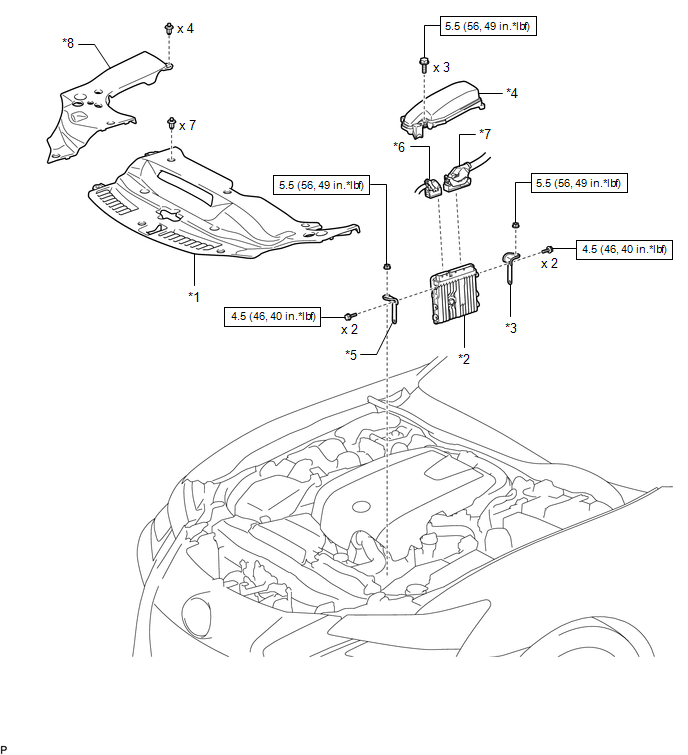

Fig 1: ECM Replacement Components With Torque Specifications
GTY666702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 ECM
*3 ECM BRACKET *4 ENGINE ROOM ECU COVER
*5 NO. 2 ECM BRACKET *6 ENGINE ROOM MAIN WIRE
*7 ENGINE WIRE *8 ENGINE ROOM SIDE COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -
