Components [10/2015 - ]: Illustration

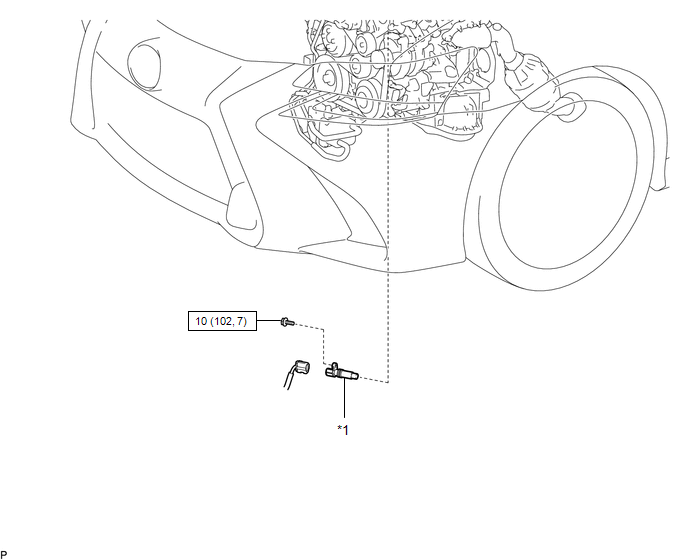

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY633322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
