Installation [09/2014 - 10/2015]: Procedure
- INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
- INSTALL STEERING COLUMN COVER NOTE:
If the lower steering column cover is installed in the incorrect order, it will not be possible to assemble the steering column cover.

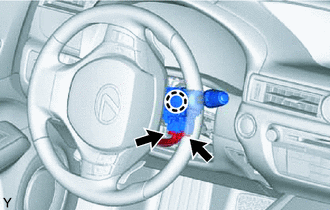

- Engage the 2 claws to install the upper steering column cover.
- w/ Driver Monitor Camera:
- Connect the connector.
- Engage the 4 clips and 2 guides to install the instrument panel cluster finish panel to the upper steering column cover.
- Engage the 2 claws.

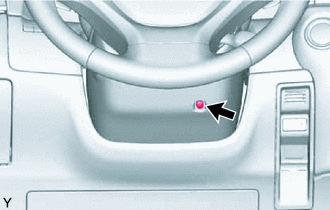

- Install the screw as shown in the illustration.
Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

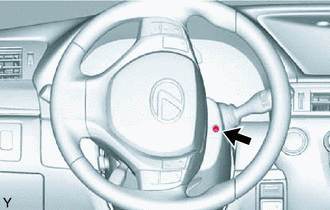

- Turn the steering wheel assembly to the left to install the screw.
Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

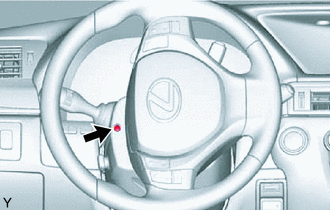

- Turn the steering wheel assembly to the right to install the screw.
Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
- Reset the auto away/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2014 - ] ).
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] ).
