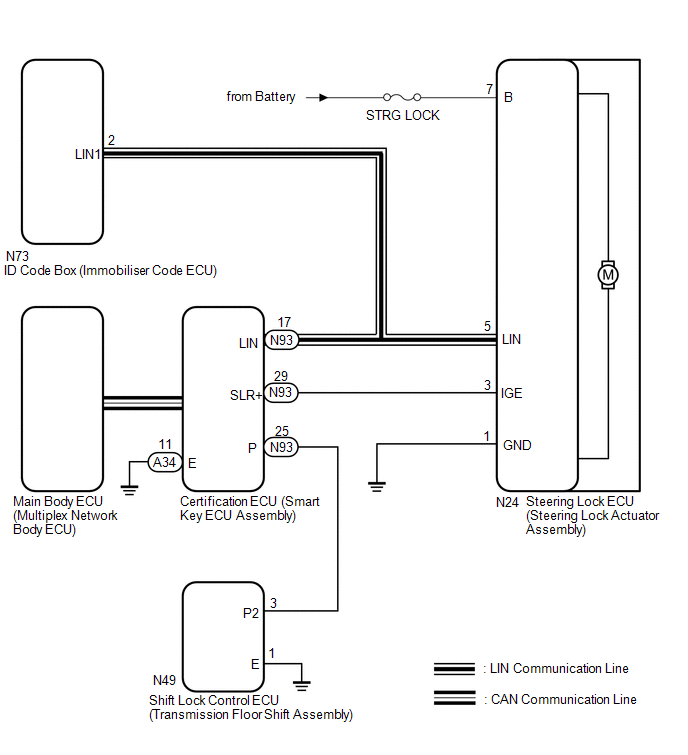

Unable to Unlock Steering Wheel (Engine cannot Start) [09/2014 - ]: Wiring Diagram

GTY670568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
