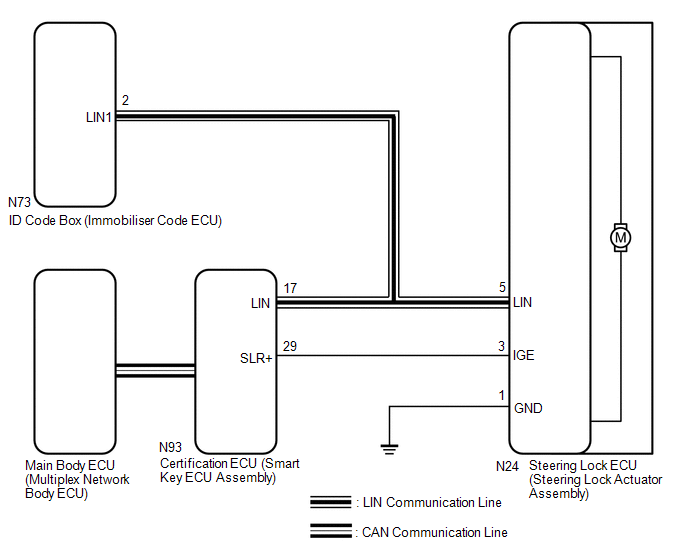

Unable to Lock Steering Wheel [09/2014 - ]: Wiring Diagram

GTY677304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
