Components [10/2015 - ]: Illustration

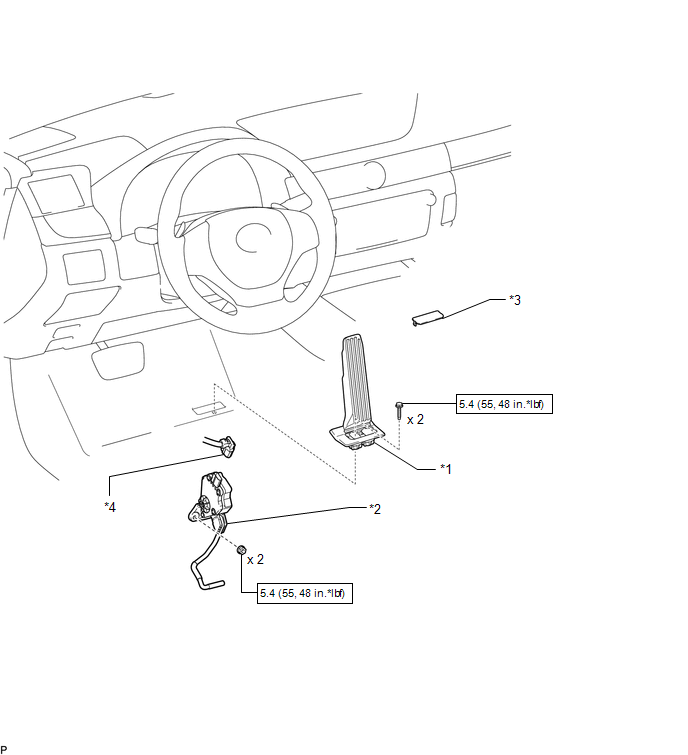

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY670597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1
ACCELERATOR PEDAL ASSEMBLY		 ACCELERATOR PEDAL *2 ACCELERATOR PEDAL SENSOR ASSEMBLY
*3 ACCELERATOR PEDAL PAD *4 ACCELERATOR PEDAL SENSOR CONNECTOR
N*m (kgf*cm, ft.*lbf): Specified torque - -
