Engine Room Relay Block No. 2 Front Fender Apron LH: Notes

For additional information, refer to Figure.

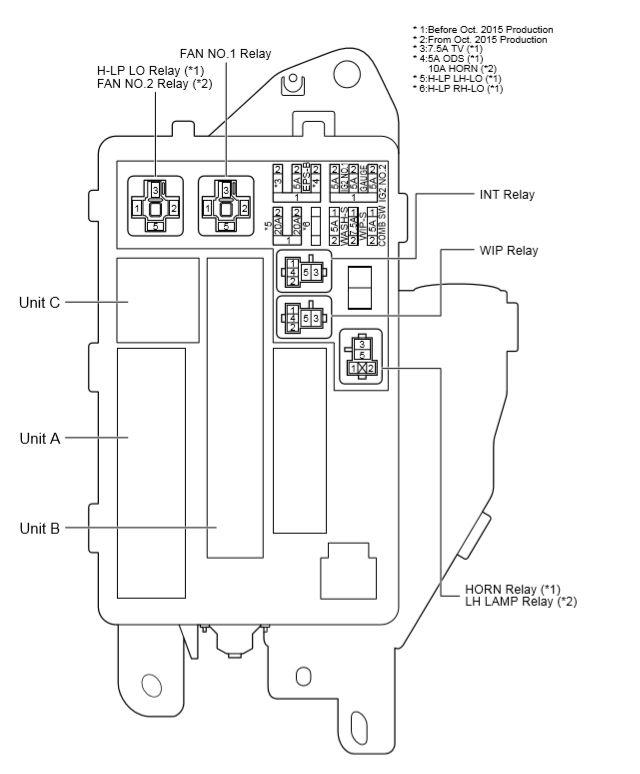

Fig 1: Engine Room R/B No. 2 Relay Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 RELAY IDENTIFICATION

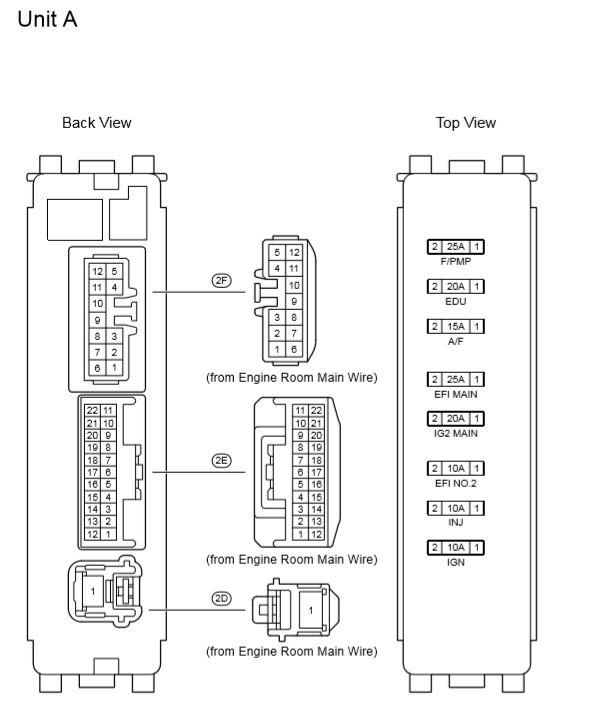

Fig 2: Engine Room R/B No. 2 Assembly Identification(Unit A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

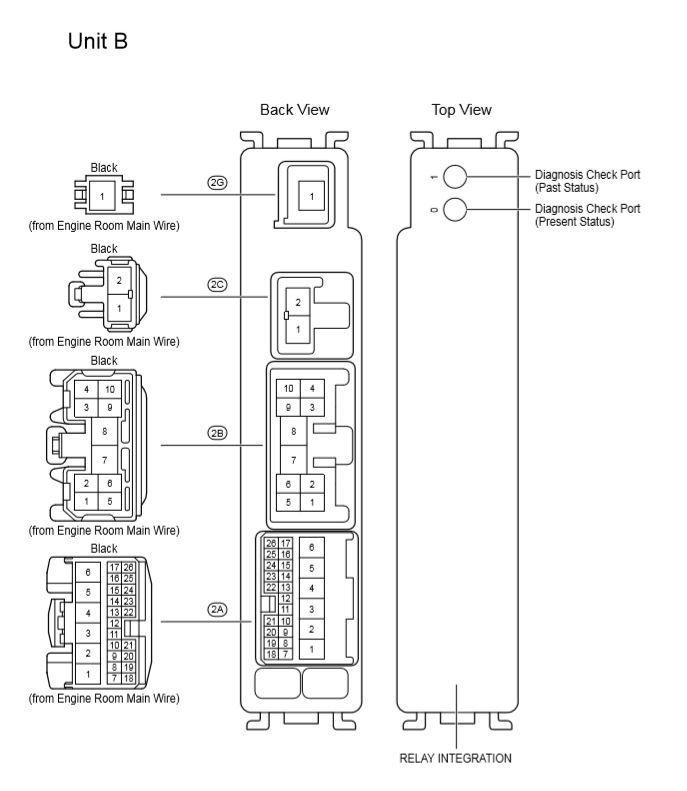

Fig 3: Engine Room R/B No. 2 Assembly Identification(Unit B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

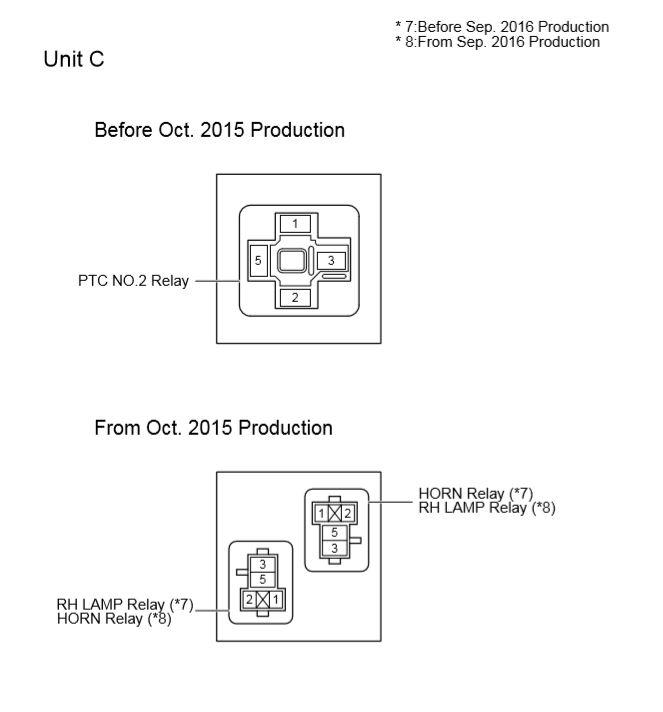

Fig 4: Engine Room R/B No. 2 Assembly Identification(Unit C)

ENGINE ROOM R/B NO. 2 (Unit C) RELAY IDENTIFICATION

RELAY DESCRIPTION
PTC NO. 2 Relay
RH LAMP Relay (7) (8)
Horn Relay (7) (8)
7: Before Sep. 2016 Production 8: From Sep. 2016 Production

Engine Room R/B And J/B No. 2 Fuse Identification Legend
