Cowl Side Junction Block RH Instrument Panel Reinforcement: Notes

For additional information, refer to Figure.

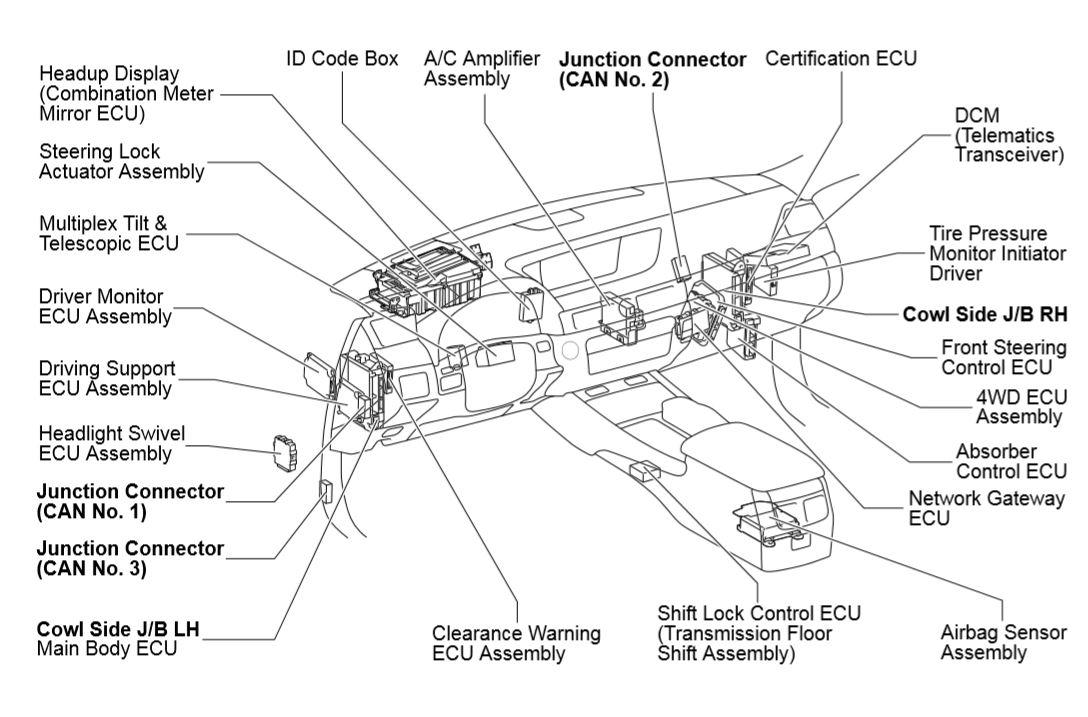

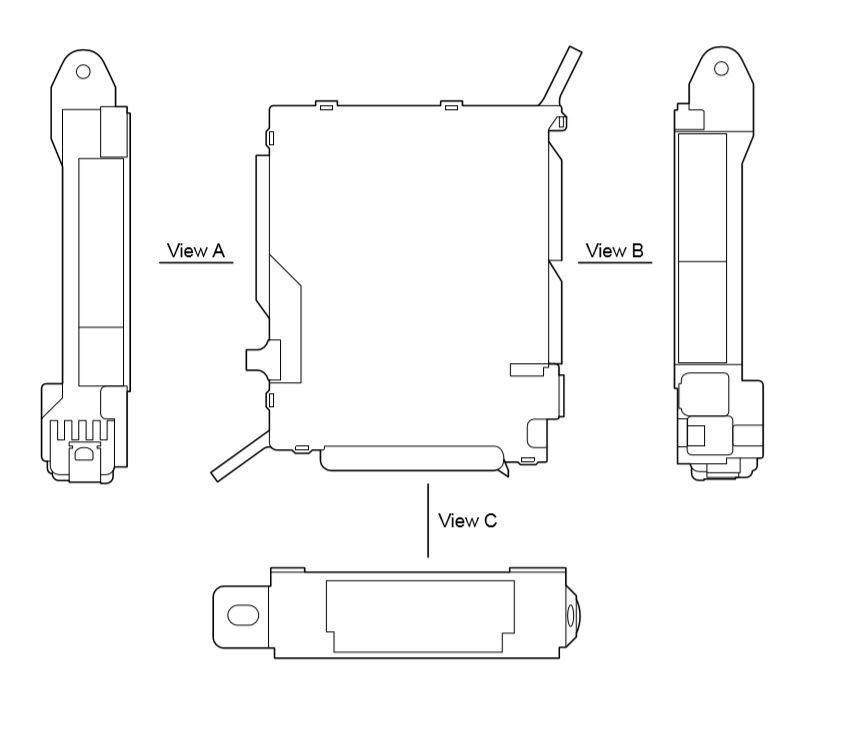

Fig 1: Cowl Side J/B RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

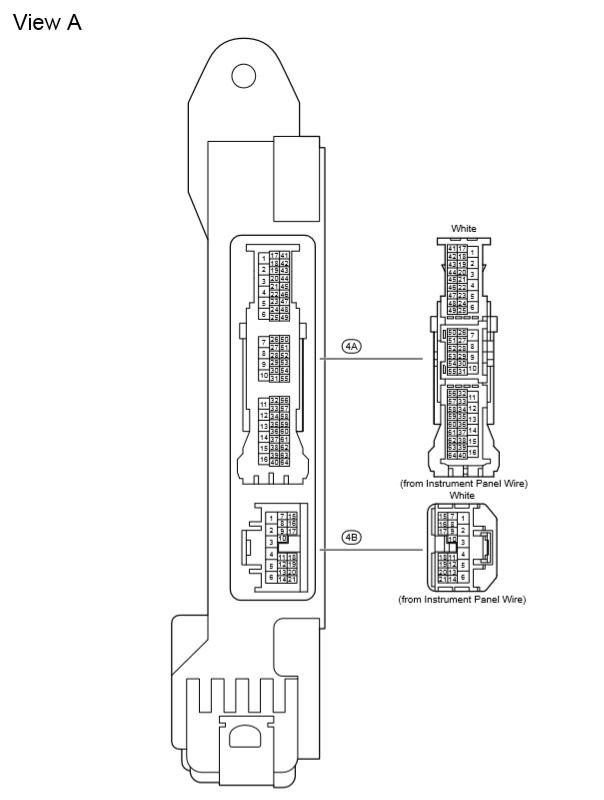

Fig 2: Cowl Side J/B RH (View A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

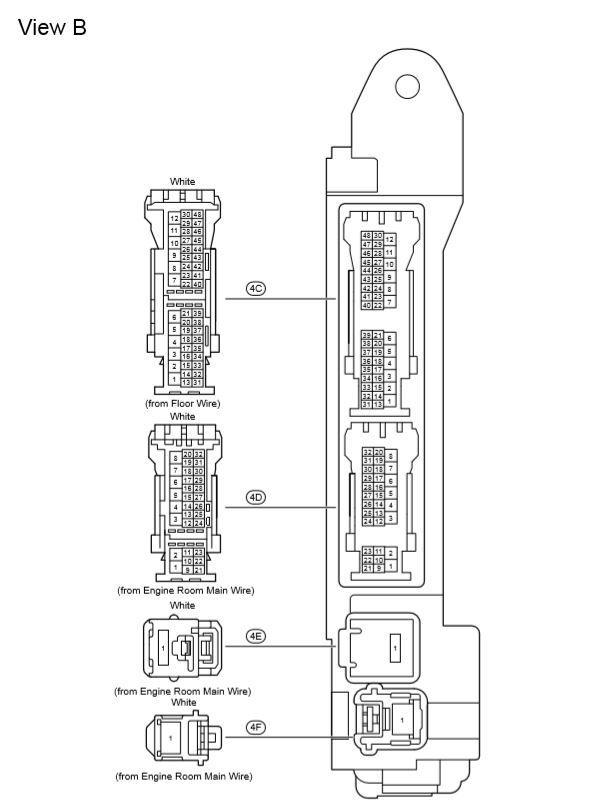

Fig 3: Cowl Side J/B RH (View B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

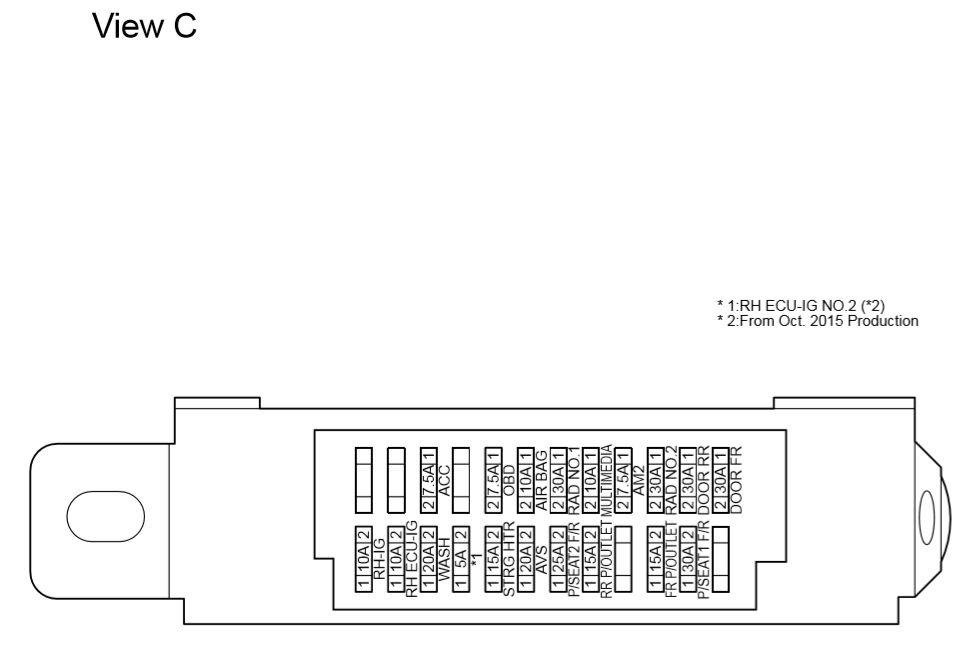

Fig 4: Cowl Side J/B RH Fuse Identification (View C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Cowl Side J/B RH Fuse Identification Legend

Fuse
5A	RH ECU-IG NO. 2
7.5A	ACC
7.5	AM2
7.5A	OBD
10A	AIR BAG
10A	MULTIMEDIA
10A	RH ECU-IG
10A	RG-IG
15A	FR P/OUTLET
15A	RR P/OUTLET
15A	STRG HTR
20A	AVS
20A	WASH
25A	P/SETA2 F/R
30A	DOOR RR
30A	P/SEAT1 F/R
30A	RAD NO. 1
30A	RAD NO. 2
