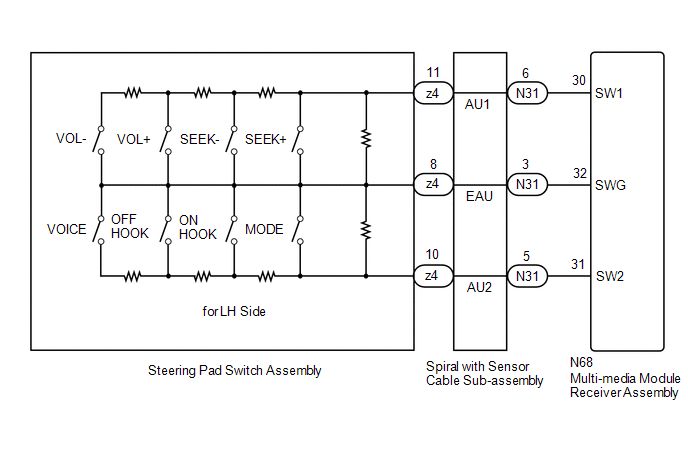

Steering Pad Switch Circuit [10/2015 - ]: Wiring Diagram

GTY627375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
