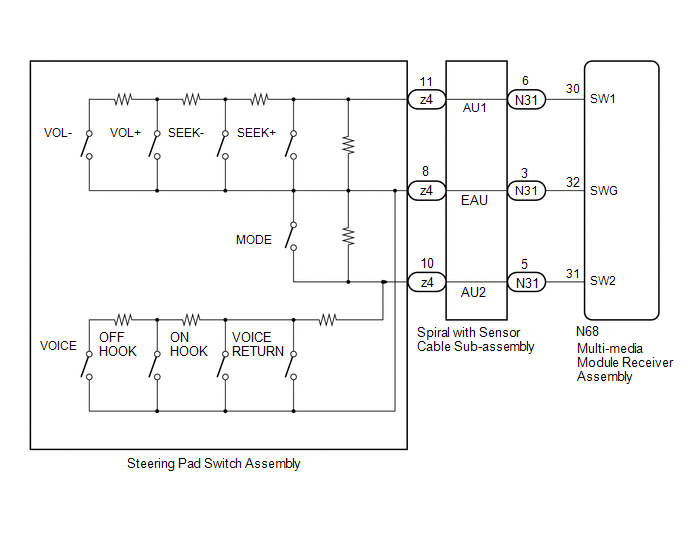

Steering Pad Switch Circuit [09/2014 - 10/2015]: Wiring Diagram

GTY679986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
