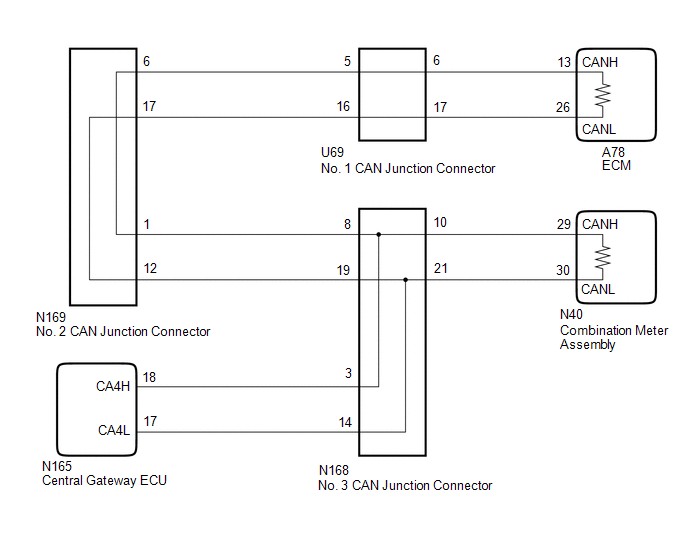

Open in Bus 2 Main Bus Line [10/2015 - 09/2018]: Wiring Diagram

GTY620777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
