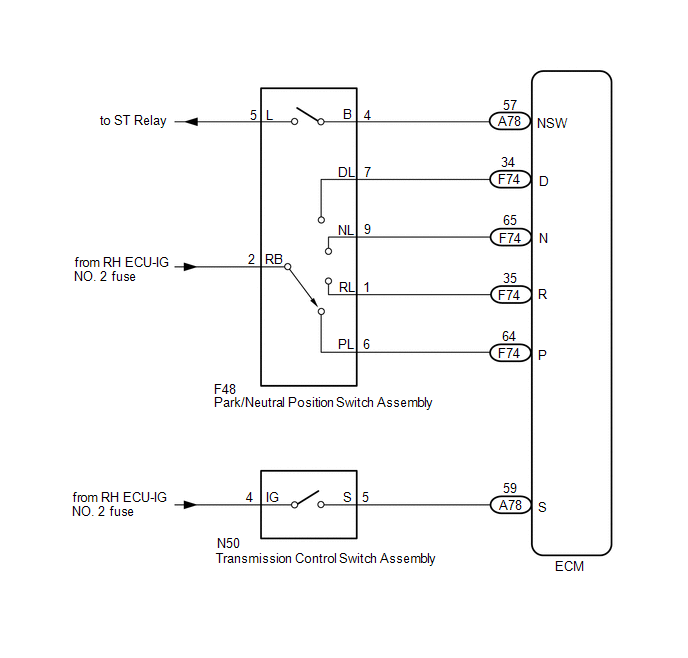

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P070562: Transmission Range Sensor "A" Signal Compare Failure [10/2015 - ]: Wiring Diagram

GTY664134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
