Installation [09/2014 - ]: Procedure

INSTALL NO. 2 INTEGRATION RELAY
1. Connect the 3 connectors.
2. Attach the 2 claws to install the No. 2 integration relay.

INSTALL NO. 2 RELAY BLOCK COVER

Attach the 2 claws closer to the rear of the vehicle.

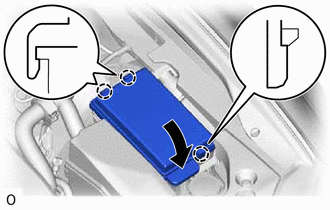

GTY401629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lower the No. 2 relay block cover in the direction shown by the arrow in the illustration and attach the front claw to install it.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] or refer to INITIALIZATION [10/2015 - ] ).
