Engine Room Relay Block No. 3 Front Fender Apron LH: Notes

For additional information, refer to Figure.

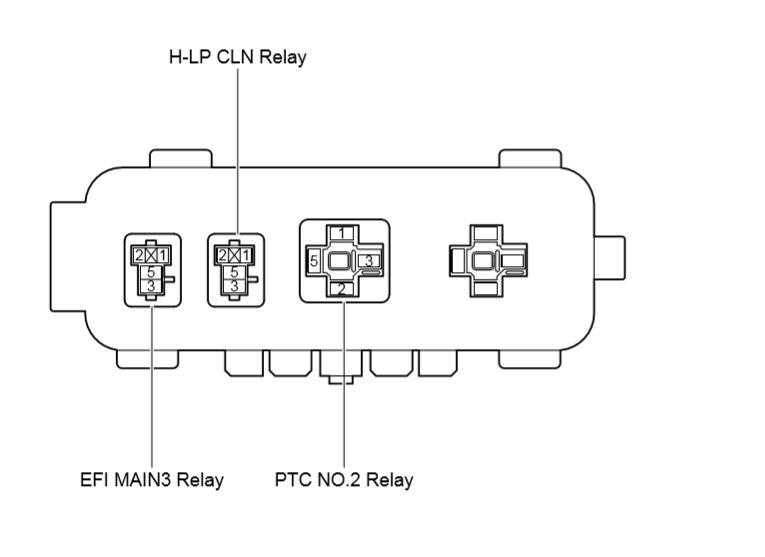

Fig 1: Engine Room R/B No. 3 Relay Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI MAIN3 Relay
H-LP CLN Relay
PTC NO. 2 Relay
