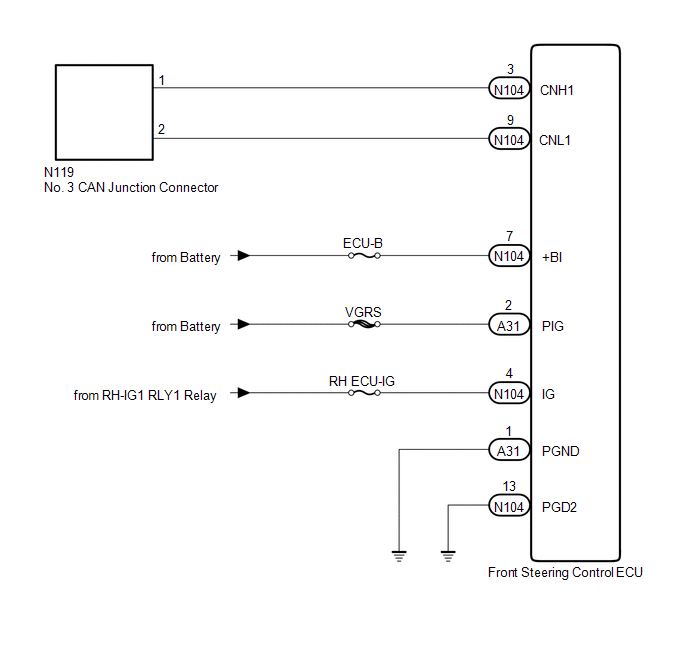

Steering Control ECU Communication Stop Mode [09/2014 - 10/2015]: Wiring Diagram

GTY417381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
