Installation [07/2015 - ]: Procedure
- INSTALL STEERING PAD SWITCH ASSEMBLY
See step 1
- INSTALL CRUISE CONTROL MAIN SWITCH
Refer to PROCEDURE - Step 1
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8
- INSTALL STEERING WHEEL ASSEMBLY

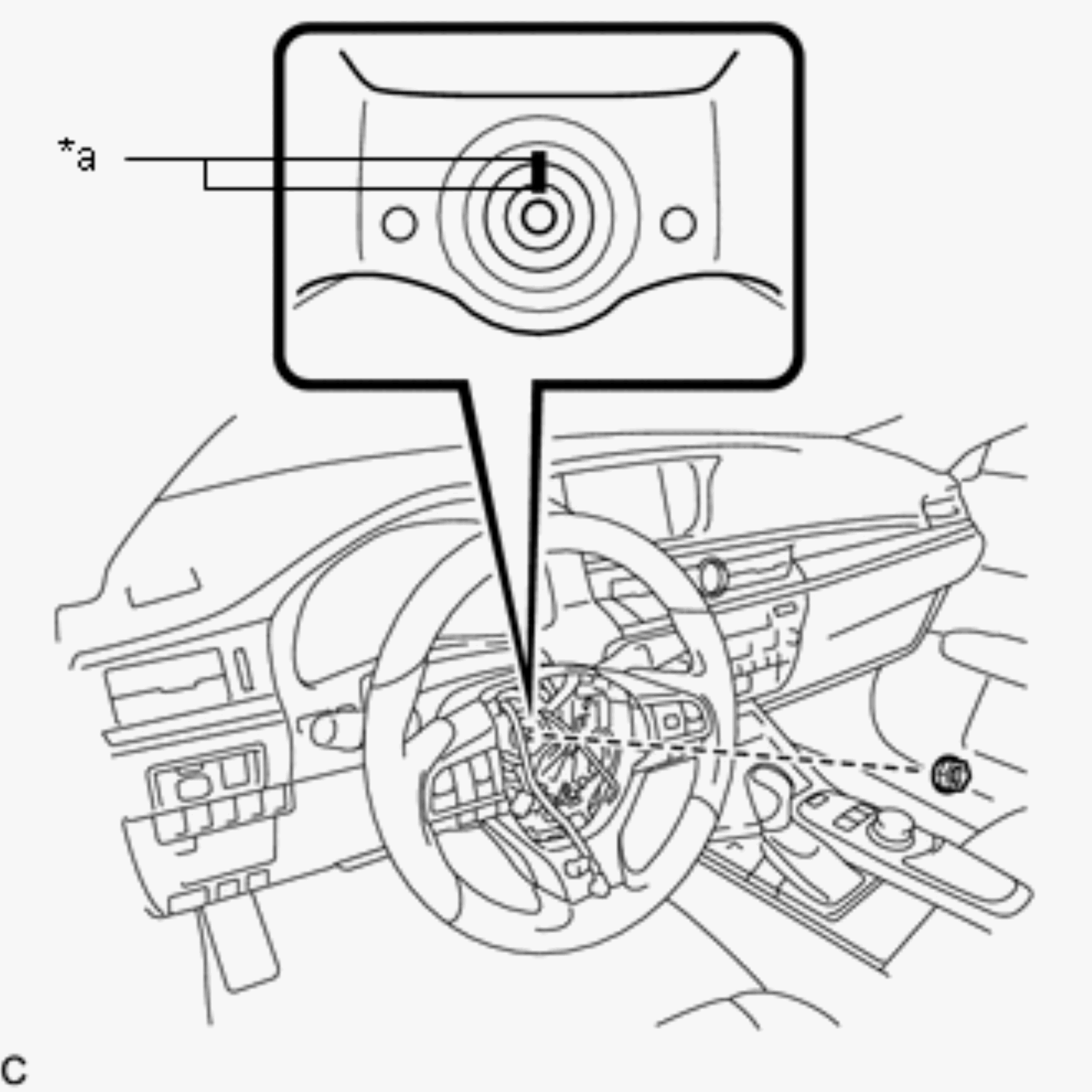

- Install the steering wheel assembly aligning the matchmarks on the steering wheel assembly and steering main shaft.TEXT IN ILLUSTRATION
*a Matchmark - Install the steering wheel assembly set nut.
Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
- w/ Heated Steering Wheel System or Pre-collision System:
- Connect the connector.
- Connect each connector to the spiral cable sub-assembly.
- Install the steering wheel assembly aligning the matchmarks on the steering wheel assembly and steering main shaft.
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
(Refer to INSTALLATION [07/2015 - 08/2016] Refer to INSTALLATION [08/2016 - ] )
