Removal [07/2015 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    (Refer to REMOVAL [07/2015 - 08/2016] Refer to REMOVAL [08/2016 - ] )

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING PAD SWITCH ASSEMBLY

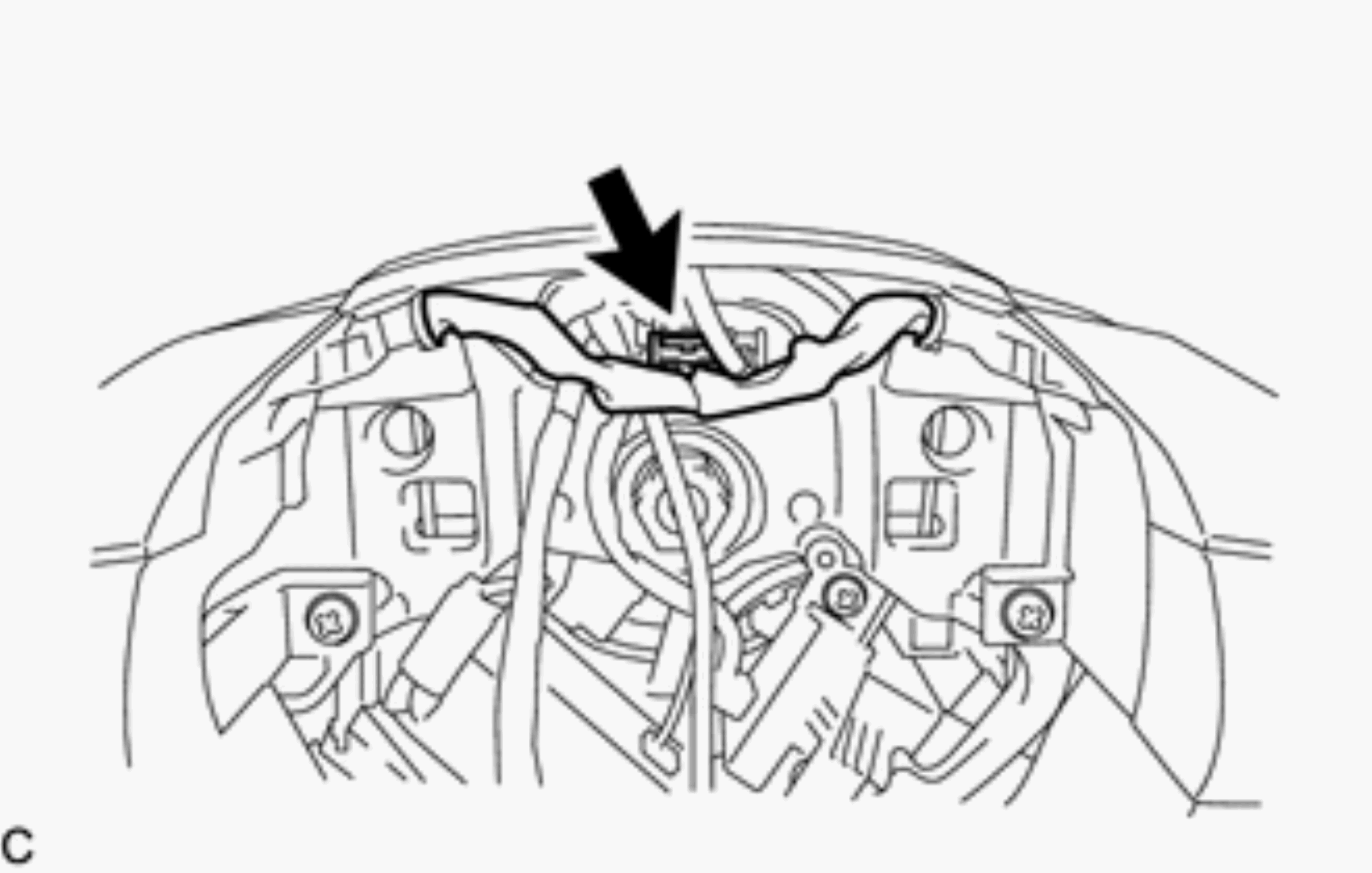

    1. Disconnect the steering pad switch connector from the spiral cable sub-assembly.
      GTY648598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

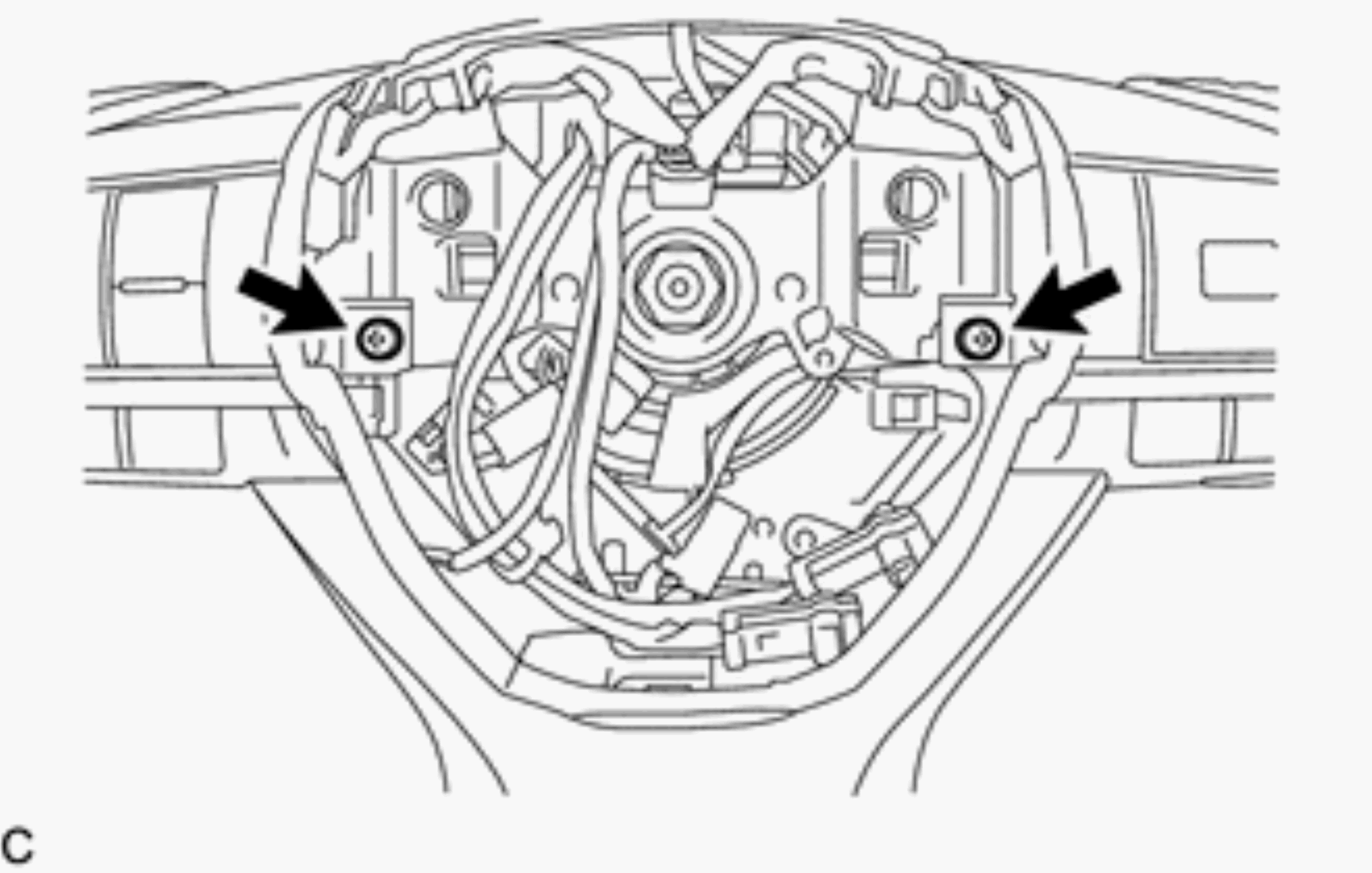

    2. Remove the 2 screws.
      GTY648582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

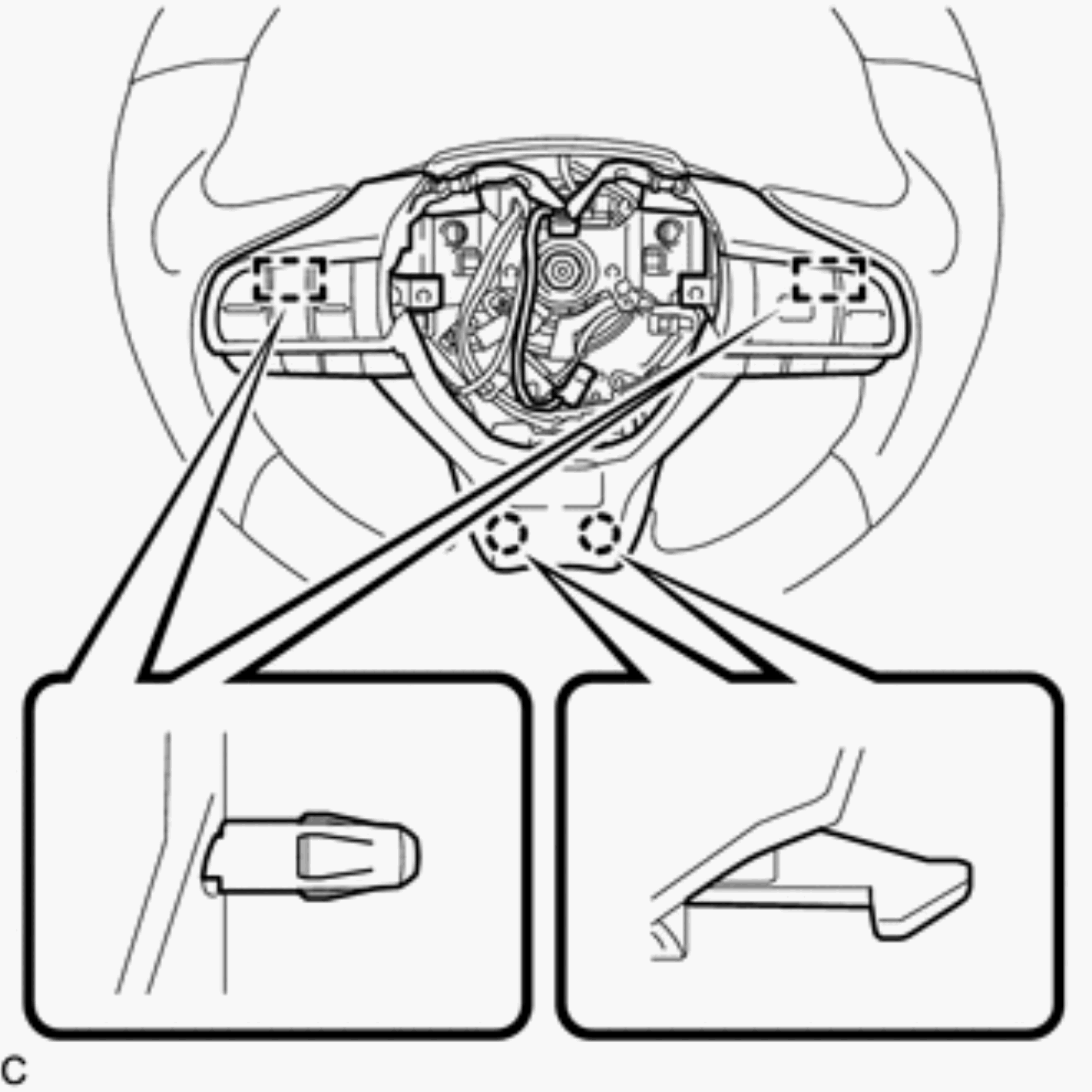

    3. Disengage the 2 claws and 2 pins to remove the steering pad switch assembly from the steering wheel sub-assembly.
      GTY648583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
