Components [07/2015 - ]: Illustration

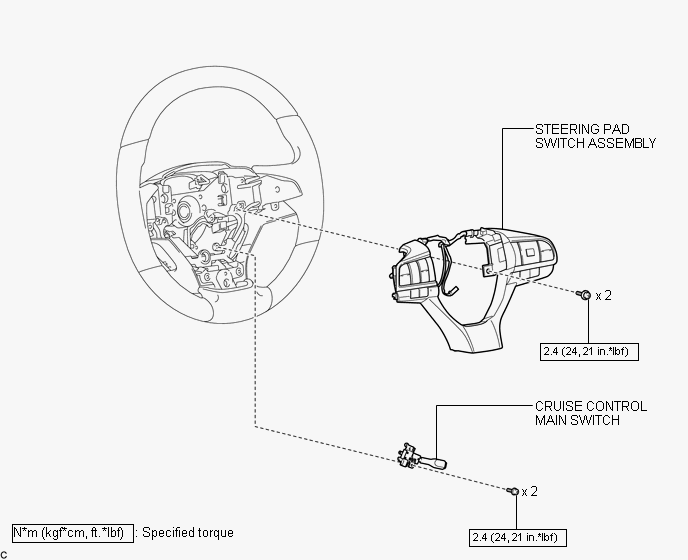

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications
GTY628398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
