Components [07/2015 - ]: Illustration

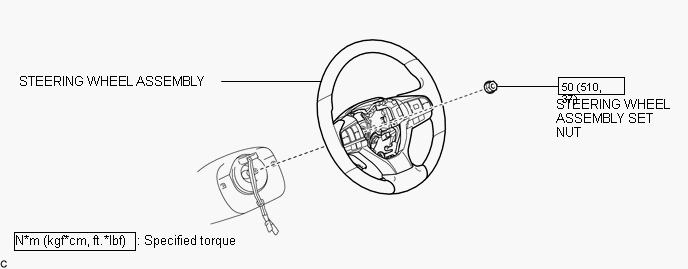

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (1 Of 9)
GTY640804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

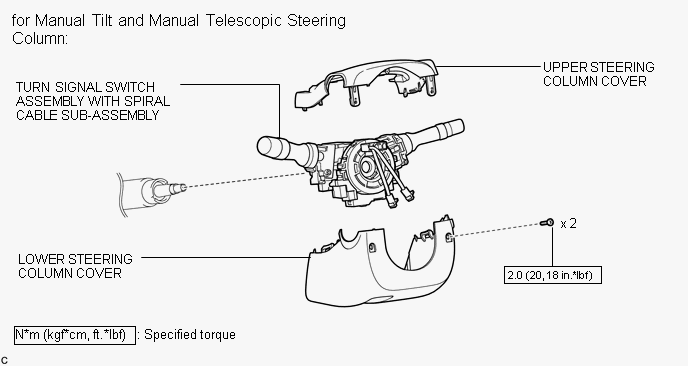

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (2 Of 9)
GTY412427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

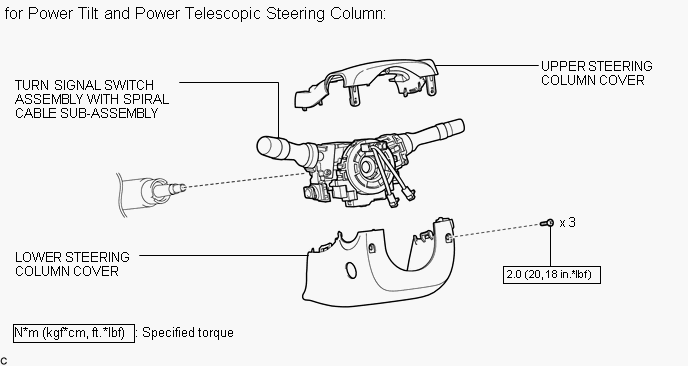

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (3 Of 9)
GTY412332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

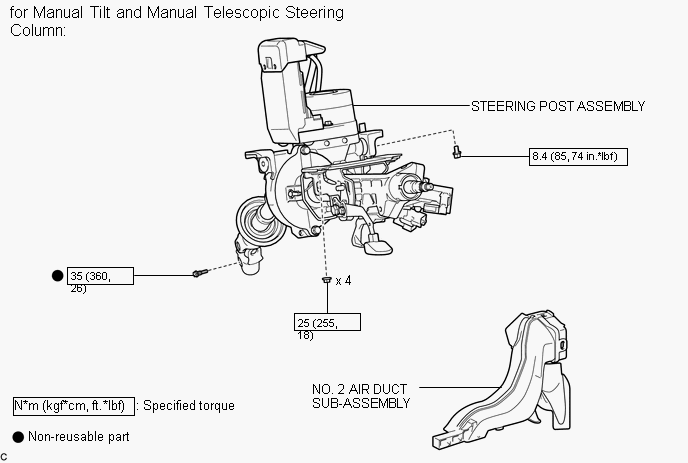

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (4 Of 9)
GTY669771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

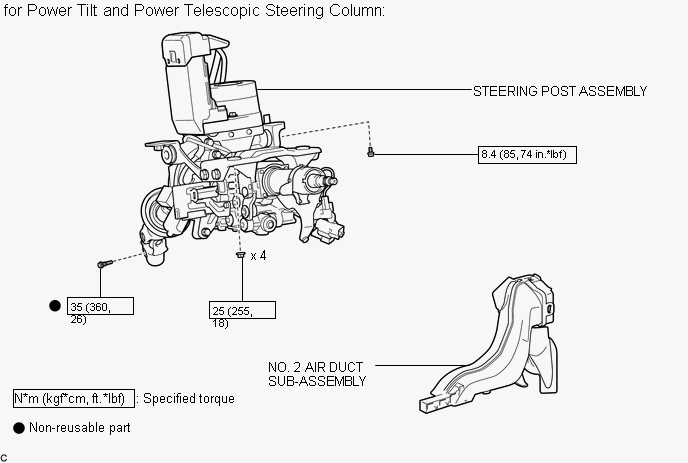

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (5 Of 9)
GTY660594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

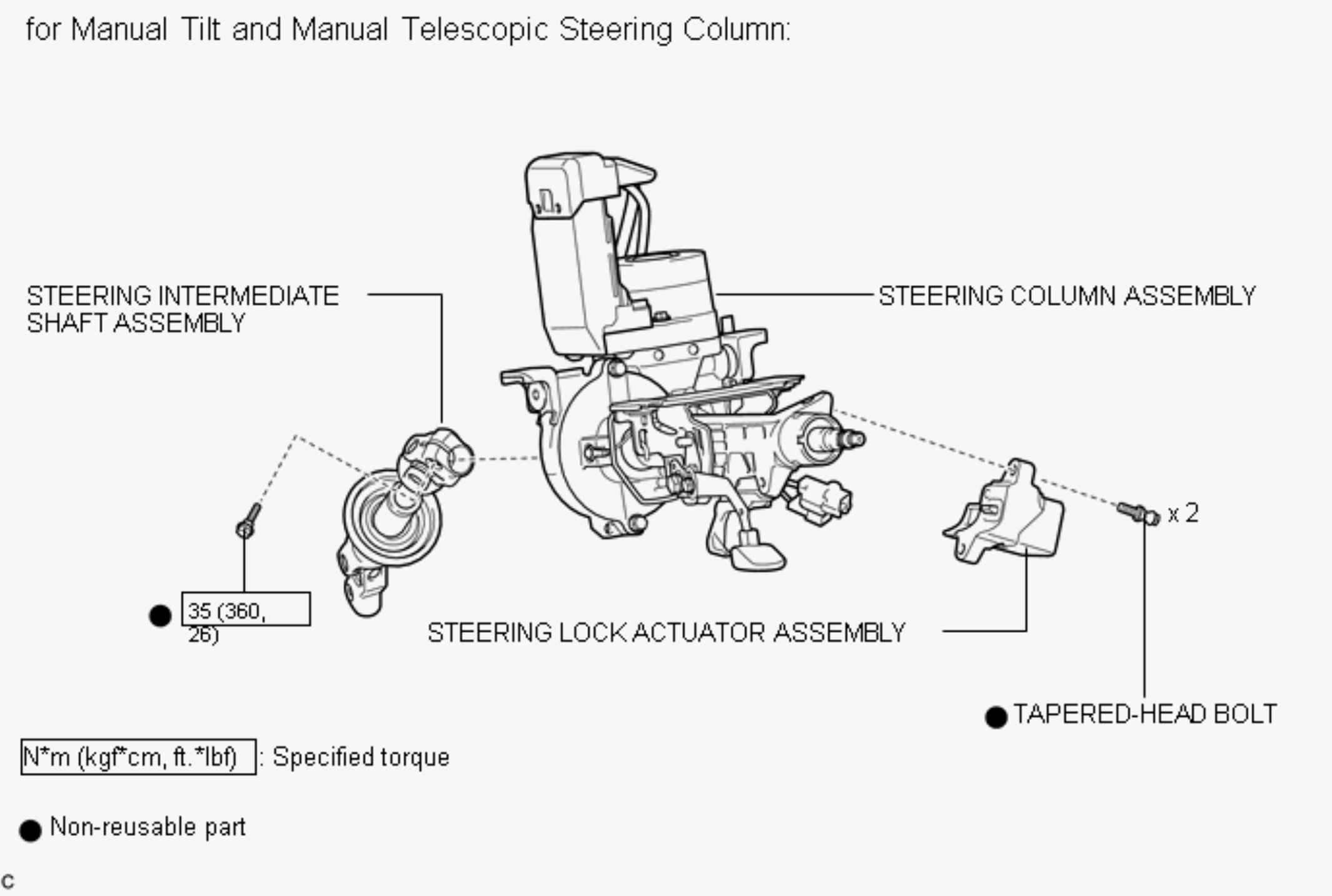

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (6 Of 9)
GTY647456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

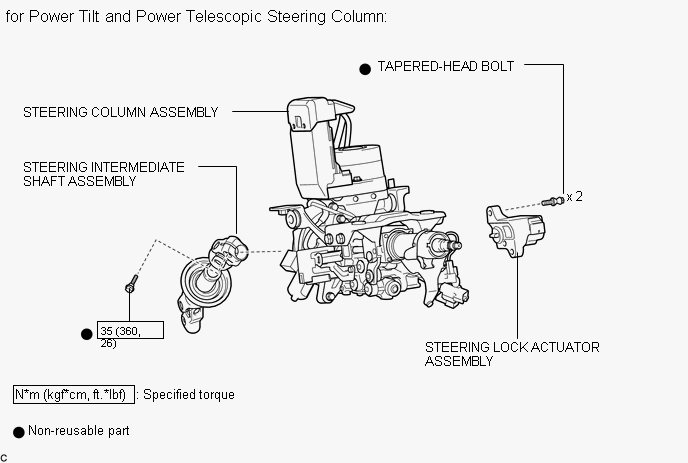

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (7 Of 9)
GTY656830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

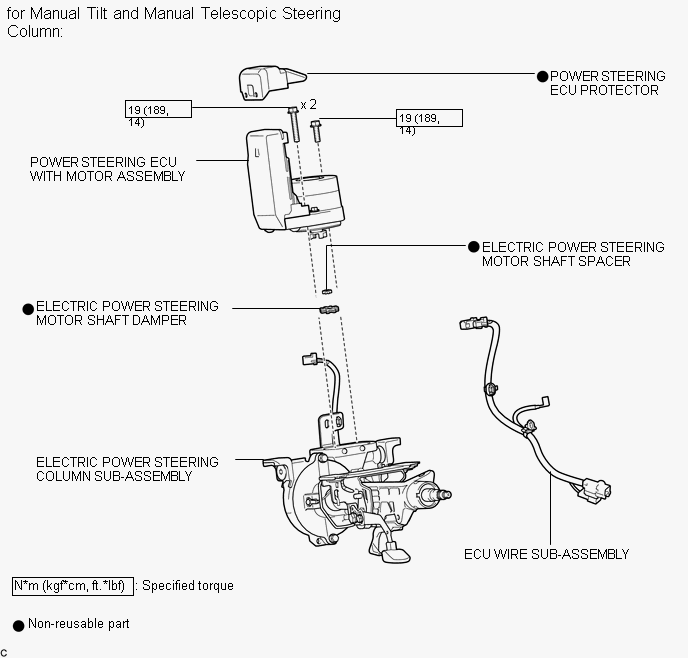

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (8 Of 9)
GTY664736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

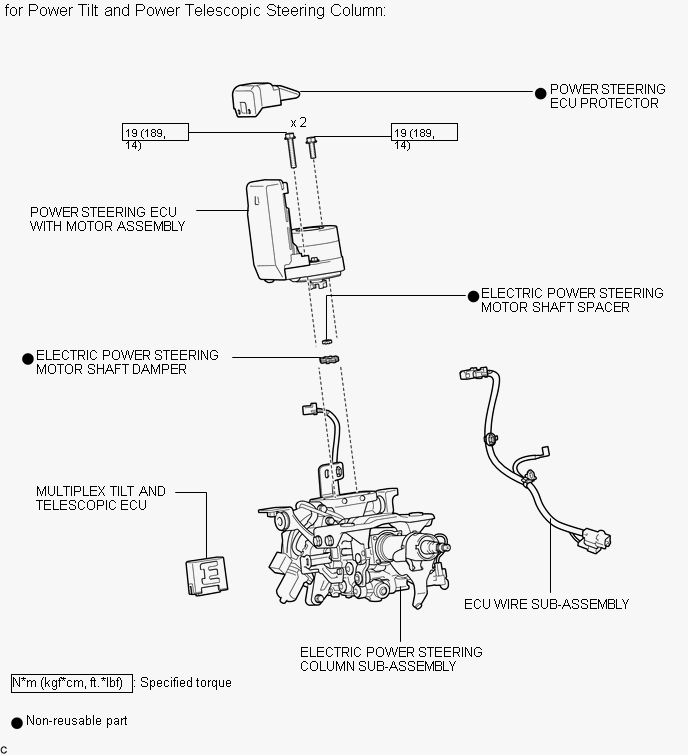

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (9 Of 9)
GTY682352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
