Removal [07/2015 - ]: Procedure

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE NO. 1 INTEGRATION RELAY

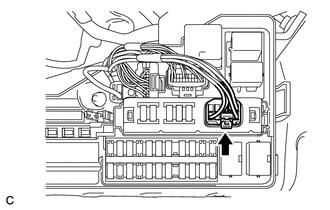

    1. Disconnect the connector.
      GTY316079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

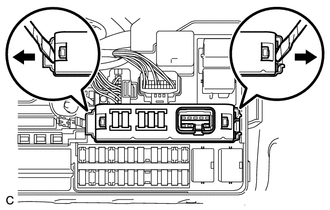

    2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the No. 1 integration relay.
      GTY322168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

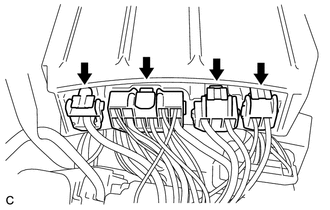

    3. Disconnect the 4 connectors and remove the No. 1 integration relay.
      GTY316077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
