Components [07/2015 - ]: Illustration

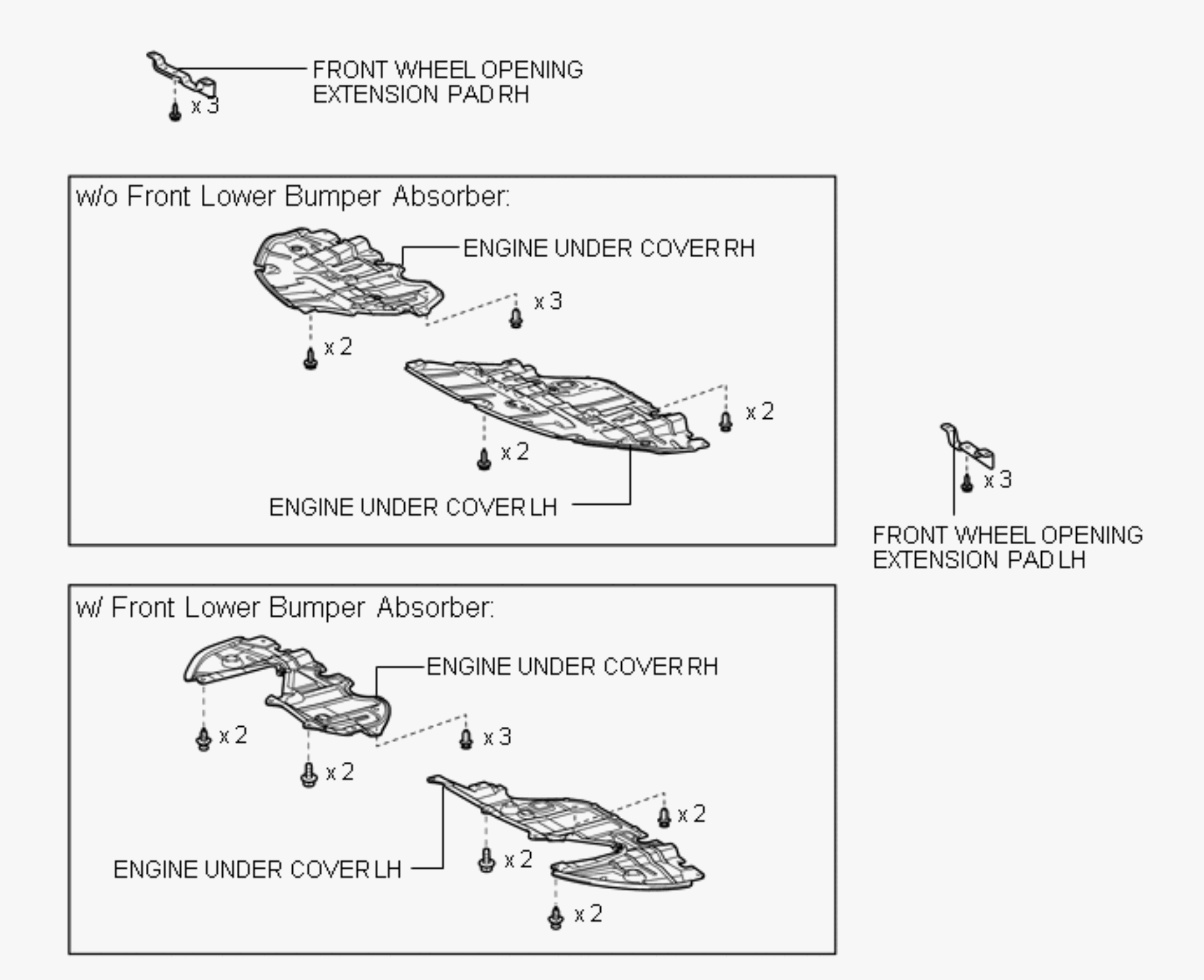

Fig 1: Engine Coolant Temperature Sensor (1 Of 3)
GTY680317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

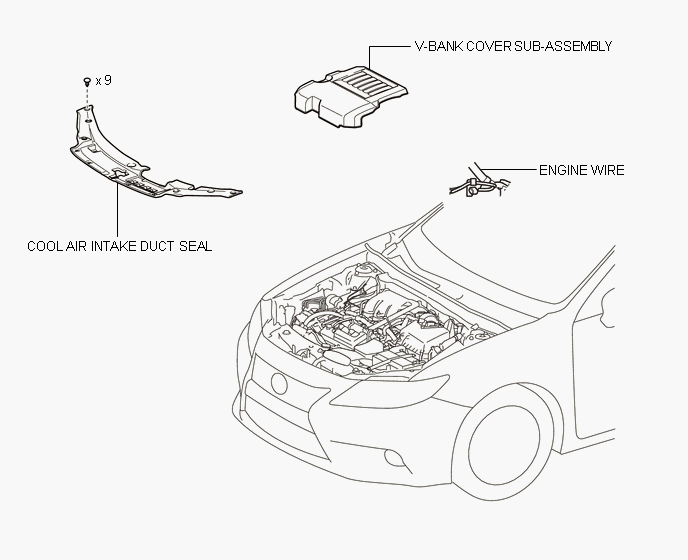

Fig 1: Engine Coolant Temperature Sensor (2 Of 3)
GTY628474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

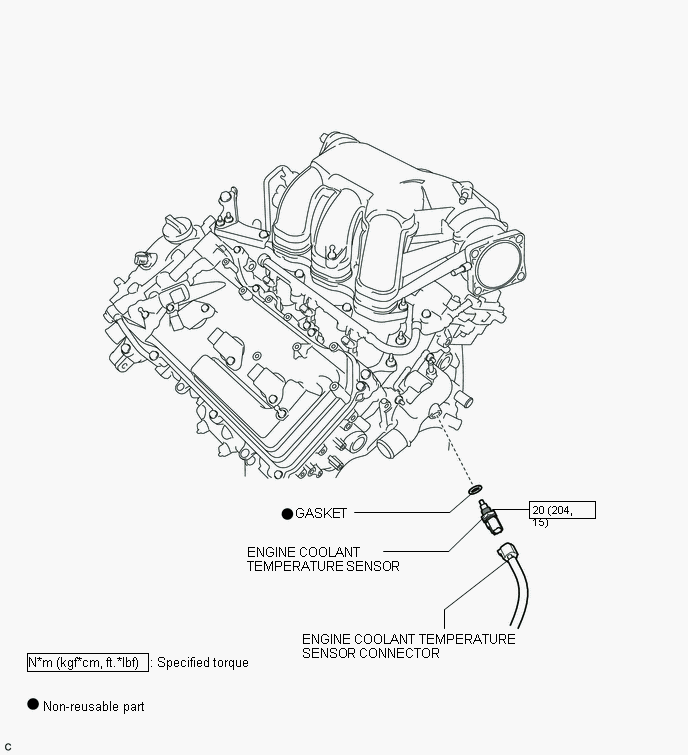

Fig 1: Engine Coolant Temperature Sensor With Torque Specifications (1 Of 3)
GTY677608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
