Removal [07/2015 - ]: Procedure

  1. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
    1. Remove the compressor and magnetic clutch (Refer to REMOVAL [07/2015 - ] ).
  2. REMOVE CRANK POSITION SENSOR

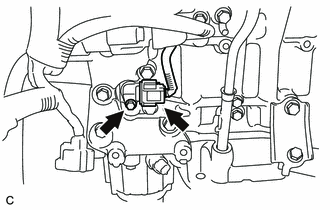

    1. Disconnect the crank position sensor connector.
      GTY315213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crank position sensor.
