Removal [07/2015 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [07/2015 - ] )

  2. REMOVE VVT SENSOR
    1. Disconnect the 4 VVT sensor connectors.
    2. Remove the 4 bolts and 4 VVT sensors.

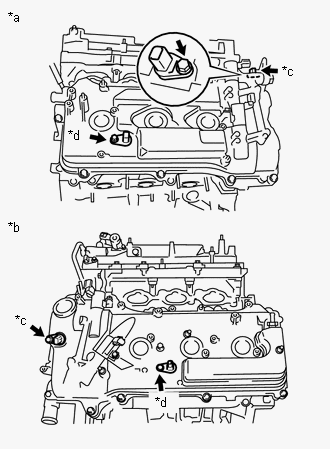

      GTY658940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a for Bank 1
      *b for Bank 2
      *c for Intake Side
      *d for Exhaust Side
