Installation [07/2015 - ]: Procedure

  1. INSTALL ENGINE ROOM JUNCTION BLOCK ASSEMBLY
    1. Connect the 2 connectors.
    2. Connect the 4 connectors to the engine room junction block assembly.

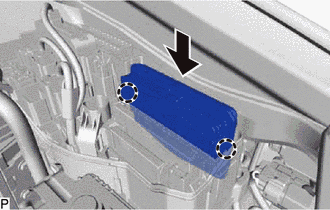

    3. Engage the 2 claws to install the engine room junction block assembly.
      GTY418842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 RELAY BLOCK COVER

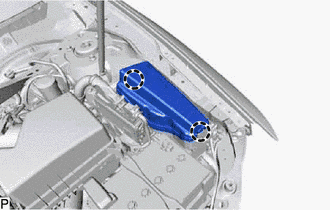

    1. Engage the 2 claws to install the No. 1 relay block cover.
      GTY409140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [07/2015 - ] ).
